Toyota Yaris: Front Seat Cushion Heater / Components
COMPONENTS
ILLUSTRATION

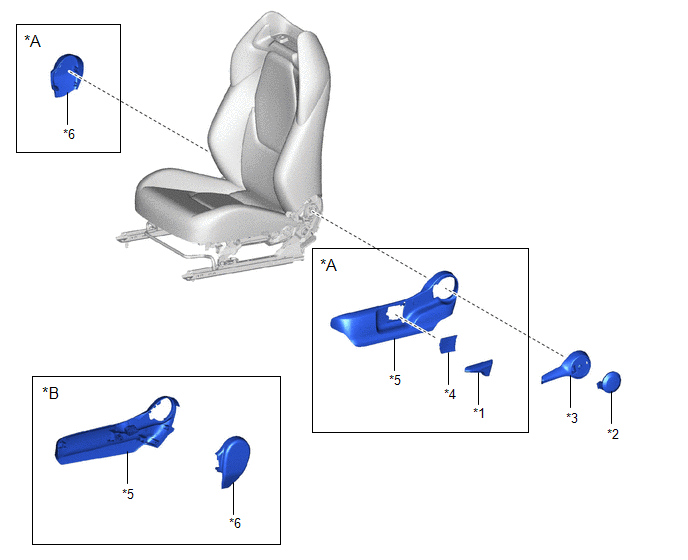

| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT VERTICAL ADJUSTER HANDLE | *2 | NO.1 RECLINING HINGE COVER |
| *3 | RECLINING ADJUSTER RELEASE HANDLE | *4 | SEAT ADJUSTER COVER CAP |
| *5 | FRONT SEAT CUSHION SHIELD | *6 | FRONT SEAT INNER CUSHION SHIELD |

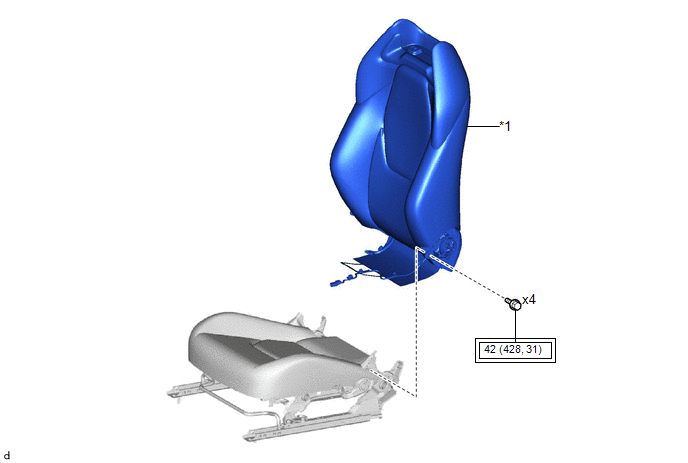

ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

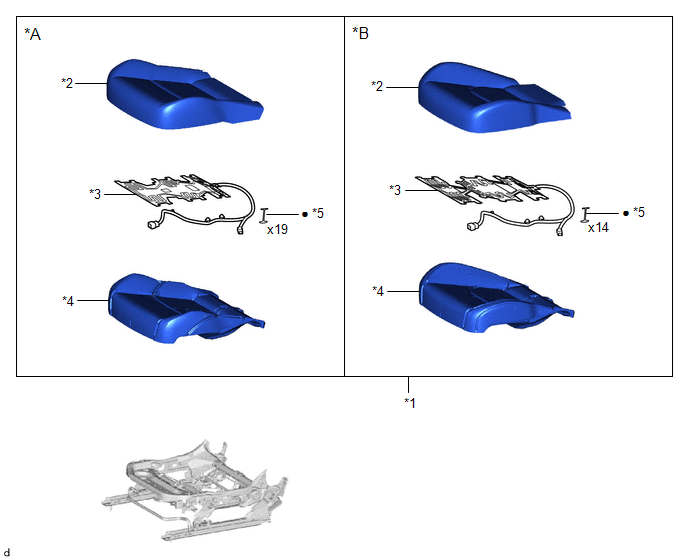

ILLUSTRATION
| *A | for Sporty Seat Type | *B | for Sports Seat Type |
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *2 | SEPARATE TYPE FRONT SEAT CUSHION COVER |
| *3 | FRONT SEAT CUSHION HEATER ASSEMBLY | *4 | SEPARATE TYPE FRONT SEAT CUSHION PAD |
| *5 | TAG PIN | - | - |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating...
