Toyota Yaris: Front Bumper / Components

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Exterior / Exterior Panels / Trim / Front Bumper / Components

COMPONENTS

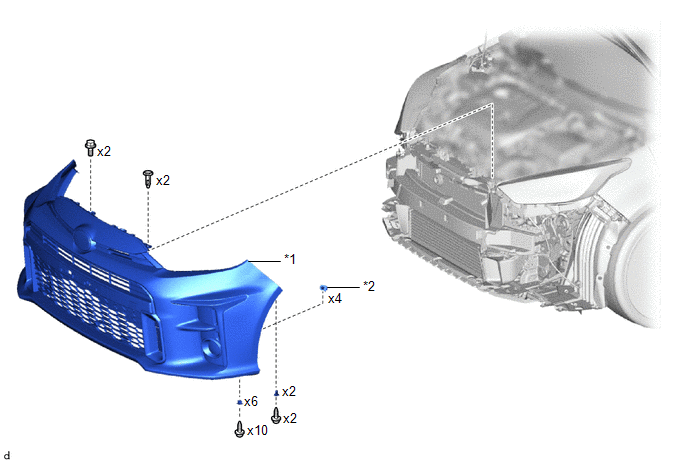

ILLUSTRATION

*1

FRONT BUMPER ASSEMBLY

*2

PIN HOLD CLIP

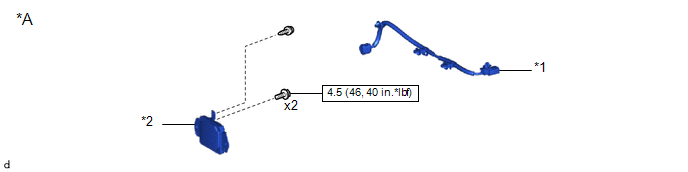

ILLUSTRATION

*A

w/ Pre-collision System

-

-

*1

NO. 3 ENGINE ROOM WIRE

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

FOG LIGHT COVER LH

*2

FOG LIGHT COVER RH

*3

FOG LIGHT ASSEMBLY LH

*4

FOG LIGHT ASSEMBLY RH

*5

FRONT BUMPER HOLE COVER

*6

HOOD TO FRONT END PANEL SEAL

*7

LOWER RADIATOR GRILLE SUB-ASSEMBLY

*8

RADIATOR GRILLE SIDE MOULDING LH

*9

RADIATOR GRILLE SIDE MOULDING RH

*10

RADIATOR GRILLE EMBLEM ASSEMBLY

*11

FRONT BUMPER EXTENSION MOUNTING BRACKET

-

-

ILLUSTRATION

*1

FRONT BUMPER ENERGY ABSORBER

*2

FRONT BUMPER SIDE RETAINER RH

*3

RADIATOR UPPER AIR GUIDE PLATE

*4

HEADLIGHT ASSEMBLY RH

*5

HEADLIGHT ASSEMBLY LH

*6

FRONT BUMPER SIDE RETAINER LH

*7

FRONT BUMPER REINFORCEMENT

*8

THERMISTOR ASSEMBLY

*9

COOL AIR INTAKE DUCT

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

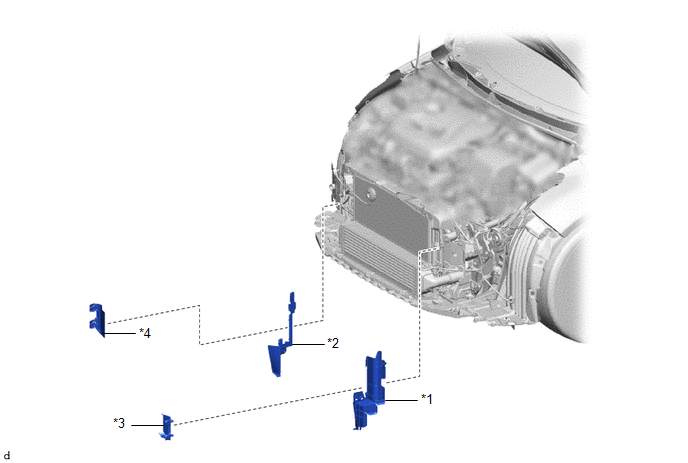

ILLUSTRATION

*1

NO. 1 RADIATOR AIR GUIDE LH

*2

NO. 1 RADIATOR AIR GUIDE RH

*3

FRONT RADIATOR SIDE AIR GUIDE PLATE LH

*4

FRONT RADIATOR SIDE AIR GUIDE PLATE RH

ILLUSTRATION

*1

FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

*2

FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

*3

NO. 1 ENGINE UNDER COVER ASSEMBLY

*4

FRONT BUMPER LOWER ABSORBER

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Front Bumper

    ..

    Removal

    REMOVAL PROCEDURE 1. REMOVE PIN HOLD CLIP (a) Apply protective tape around the front bumper assembly. HINT: Use the same procedure for the RH side and LH side...
