REMOVAL

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Lane tracing assist system

    Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.

    Pre-collision system

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

Click here

2. REMOVE HORN BUTTON ASSEMBLY

Click here

3. REMOVE NO. 1 STEERING WHEEL ORNAMENT

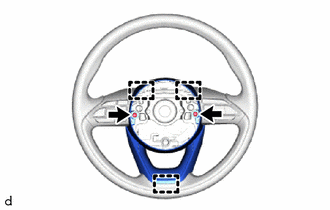

(a) Remove the 2 screws.

(b) Disengage the 3 pins to remove the No. 1 steering wheel ornament.

4. REMOVE STEERING PAD SWITCH ASSEMBLY

(a) Disconnect the steering pad switch connector from the spiral cable sub-assembly.

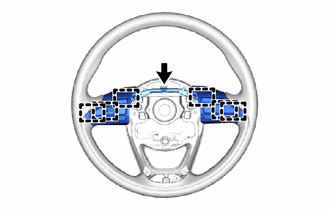

(b) Disengage the 6 pins to remove the steering pad switch assembly.

    Components

    C..

    Inspection

    INSPECTION PROCEDURE 1. INSPECT STEERING PAD SWITCH ASSEMBLY (w/ Dynamic Radar Cruise Control System) (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
