REMOVAL

PROCEDURE

1. DISCONNECT ENGINE WIRE

(a) Remove the bolt.

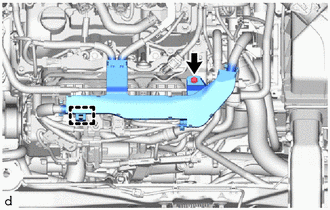

(b) Disengage the clamp and disconnect the engine wire.

2. REMOVE NO. 1 TURBO PRESSURE SENSOR

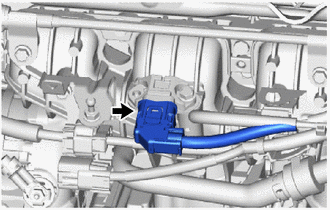

(a) Disconnect the No. 1 turbo pressure sensor connector.

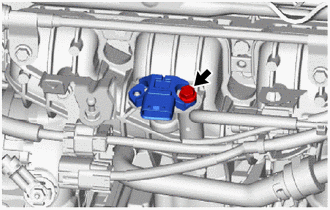

(b) Remove the bolt and No. 1 turbo pressure sensor from the intake manifold.

NOTICE:

If the No. 1 turbo pressure sensor has been struck or dropped, replace it.

3. REMOVE NO. 2 TURBO PRESSURE SENSOR

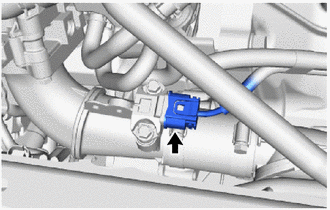

(a) Disconnect the No. 2 turbo pressure sensor connector.

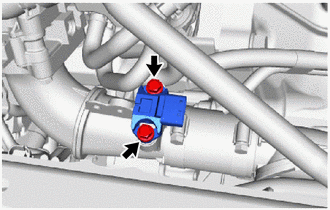

(b) Remove the 2 bolts and No. 2 turbo pressure sensor from the air tube assembly.

NOTICE:

If the No. 2 turbo pressure sensor has been struck or dropped, replace it.

    On-vehicle Inspection

    ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT NO. 1 TURBO PRESSURE SENSOR (a) Check the terminal voltage. (1) Disconnect the No. 1 turbo pressure sensor connector...

    Inspection

    INSPECTION PROCEDURE 1. INSPECT NO. 2 TURBO PRESSURE SENSOR (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition D94-4 (THIM) -D94-2 (E2) - 20°C (- 36°F) 13...
