Toyota Yaris: Parking Brake Assembly / Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the LH side and RH side.
- The following procedure is for the LH side.
PROCEDURE
1. APPLY HIGH TEMPERATURE GREASE
(a) Apply high temperature grease to the areas of the parking brake plate which make contact with the shoes as shown in the illustration.
 | High Temperature Grease |
2. INSTALL PARKING BRAKE SHOE LEVER
| (a) Using needle-nose pliers, install the parking brake shoe lever to the parking brake cable assembly. |
|

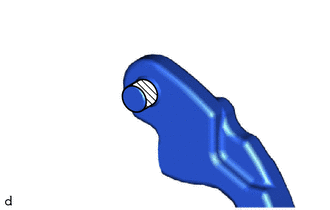

(b) Apply high temperature grease to the areas of the parking brake shoe lever which make contact with the No. 2 parking brake shoe assembly.
 | High Temperature Grease |
3. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY
| (a) Insert the pin of the parking brake shoe lever into the No. 2 parking brake shoe assembly. |
|

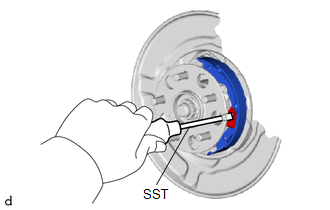

| (b) Using SST, install the No. 2 parking brake shoe assembly with the parking brake shoe hold down spring and parking brake shoe hold down spring pin. SST: 09718-00012 |
|
4. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY
| (a) Using SST, install the No. 1 parking brake shoe assembly with the parking brake shoe hold down spring and parking brake shoe hold down spring pin. SST: 09718-00012 |
|
5. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET
 | High Temperature Grease |
(a) Apply high temperature grease to the parking brake shoe adjusting screw set as shown in the illustration.

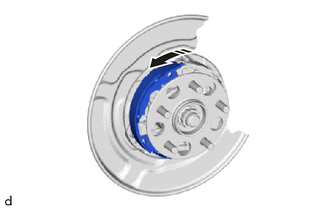

| (b) Pull the No. 1 parking brake shoe assembly towards the front of the vehicle by hand. |
|

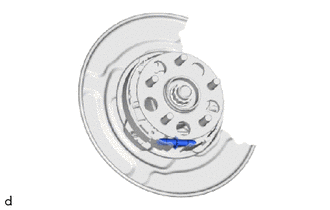

| (c) Install the parking brake shoe adjusting screw set. |
|
6. INSTALL NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING

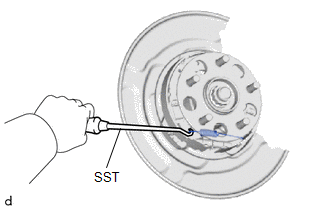

| (a) Using SST, install the No. 1 parking brake shoe return tension spring. SST: 09921-00011 |
|
7. INSTALL PARKING BRAKE SHOE STRUT
| (a) Pull the No. 1 parking brake shoe assembly towards the front of the vehicle by hand. |
|

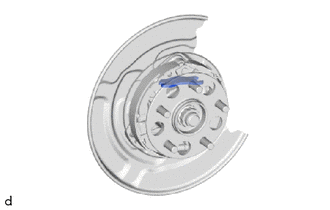

| (b) Install the parking brake shoe strut. |
|
8. INSTALL NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING

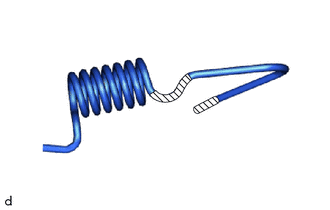

(a) Apply high temperature grease to the areas of the No. 2 parking brake shoe return tension spring which make contact with the No. 2 parking brake shoe assembly and parking brake shoe strut.
 | High Temperature Grease |

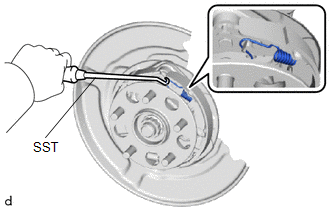

| (b) Using SST, install the No. 2 parking brake shoe return tension spring. SST: 09921-00011 NOTICE: Insert the tip of the No. 2 parking brake shoe return tension spring into the hole in the parking brake shoe strut as shown in the illustration. |
|
9. INSTALL NO. 3 PARKING BRAKE SHOE RETURN TENSION SPRING
| (a) Using needle-nose pliers, install the No. 3 parking brake shoe return tension spring. SST: 09921-00011 |
|
10. CHECK PARKING BRAKE INSTALLATION
(a) Check that each part is installed properly.
| *A | LH Side | *B | RH Side |
 | Front of the Vehicle | - | - |
NOTICE:
There should be no oil or grease on the friction surfaces of the shoe linings or discs.
11. INSTALL REAR DISC
Click here
12. ADJUST PARKING BRAKE SHOE CLEARANCE
Click here
13. INSTALL PARKING BRAKE SHOE ADJUSTING HOLE PLUG
Click here
14. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
Click here
15. ADJUST PARKING BRAKE LEVER TRAVEL
Click here
16. INSTALL REAR WHEEL
Click here
