Toyota Yaris: Rear Axle Hub Bolt / Components

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Drivetrain / Axle And Differential / Rear Axle Hub Bolt / Components

COMPONENTS

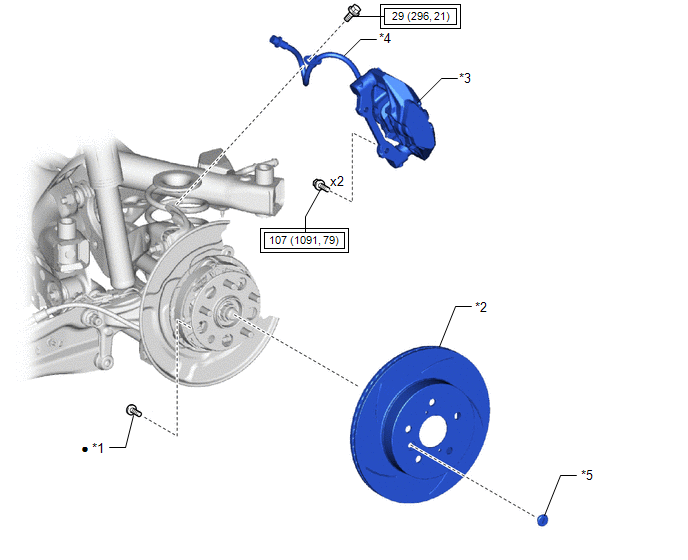

ILLUSTRATION

*1

REAR AXLE HUB BOLT

*2

REAR DISC

*3

REAR DISC BRAKE CALIPER ASSEMBLY

*4

REAR FLEXIBLE HOSE

*5

PARKING BRAKE SHOE ADJUSTING HOLE PLUG

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

    Rear Axle Hub Bolt

    ..

    Replacement

    REPLACEMENT CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1...
