Toyota Yaris: Rear Axle Hub Bolt / Replacement
REPLACEMENT
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE REAR WHEEL
Click here
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
(a) Remove the bolt and separate the rear flexible hose from the rear flexible hose bracket.

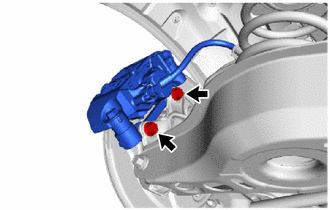

| (b) Remove the 2 bolts and separate the rear disc brake caliper assembly from the rear axle carrier sub-assembly. NOTICE: Use wire or an equivalent tool to keep the rear disc brake caliper assembly from hanging by the rear flexible hose. |
|
3. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
Click here
4. REMOVE REAR DISC
Click here
5. REMOVE REAR AXLE HUB BOLT
(a) Temporarily install 2 service nuts to the rear axle hub bolts as shown in the illustration.
Recommended Service Nut:
Thread diameter: 12.0 mm (0.472 in.)
Thread pitch: 1.5 mm (0.0591 in.)
NOTICE:
Install the service nuts to prevent damage to the rear axle hub bolts.

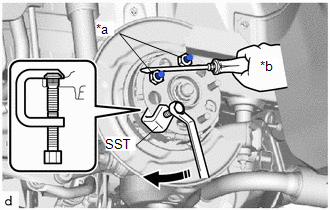

| *a | Service Nut |
| *b | Hold |
 | Turn |
(b) Using SST and a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, remove the rear axle hub bolt.
SST: 09611-12010
NOTICE:
Do not damage the threads of the rear axle hub bolts.
6. INSTALL REAR AXLE HUB BOLT
(a) Temporarily install a new rear axle hub bolt to the rear axle hub and bearing assembly.

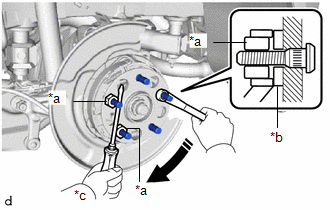

| *a | Service Nut |
| *b | Washer |
| *c | Hold |
 | Turn |
(b) Install a washer and service nut to the rear axle hub bolt as shown in the illustration.
Recommended Service Nut:
Thread diameter: 12.0 mm (0.472 in.)
Thread pitch: 1.5 mm (0.0591 in.)
HINT:
Recommended washer thickness is 5 mm (0.197 in.) or more.
(c) Using a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, install the rear axle hub bolt by tightening the service nut.
NOTICE:
- Install the service nuts to prevent damage to the rear axle hub bolts.
- Do not damage the threads of the rear axle hub bolts.
(d) Remove the 3 service nuts and washer from the 3 rear axle hub bolts.
7. INSTALL REAR DISC
Click here
8. ADJUST PARKING BRAKE SHOE CLEARANCE
Click here
9. INSTALL PARKING BRAKE SHOE ADJUSTING HOLE PLUG
Click here
10. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
(a) Install the rear disc brake caliper assembly to the rear axle carrier sub-assembly with the 2 bolts.
Torque:
107 N·m {1091 kgf·cm, 79 ft·lbf}
(b) Install the rear flexible hose to the rear flexible hose bracket with the bolt.
Torque:
29 N·m {296 kgf·cm, 21 ft·lbf}
11. INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL
Click here
12. INSTALL REAR WHEEL
Click here
Components
COMPONENTS ILLUSTRATION
*1 REAR AXLE HUB BOLT *2 REAR DISC *3 REAR DISC BRAKE CALIPER ASSEMBLY *4 REAR FLEXIBLE HOSE *5 PARKING BRAKE SHOE ADJUSTING HOLE PLUG - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...
