Toyota Yaris: Specifications / Identification Numbers
Vehicle Information Labels

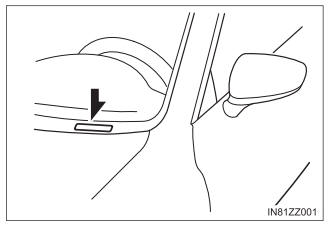

Vehicle Identification Number
The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the cowl panel located on the left corner of the dashboard. This plate can easily be seen through the windshield.
tolkachi.ru

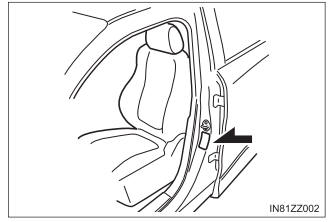

Motor Vehicle Safety Standard Label

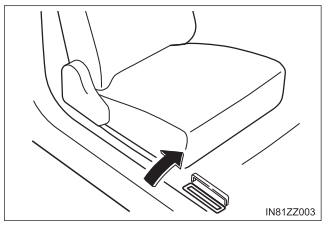

Chassis Number
Open the cover shown in the figure to check the chassis number.

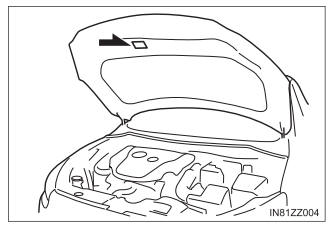

Vehicle Emission Control Information Label

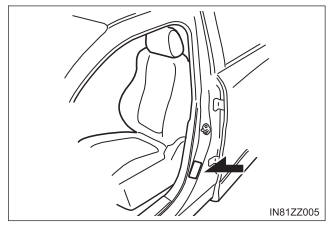

Tire Pressure Label

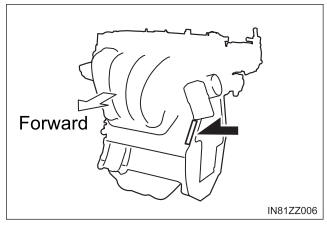

Engine Number
Specifications
Engine
Electrical System
*: The spark plugs provide the engine its optimum performance. Consult your
Toyota dealer for details.
NOTICE
When cleaning the iridium plugs, do not use a wire brush...
