Toyota Yaris: Brake (rear) / Rear Disc Brake Pad

Toyota Yaris XP210 (2020-2023) Reapir and Service Manual / Brake / Brake (rear) / Rear Disc Brake Pad

Components

COMPONENTS

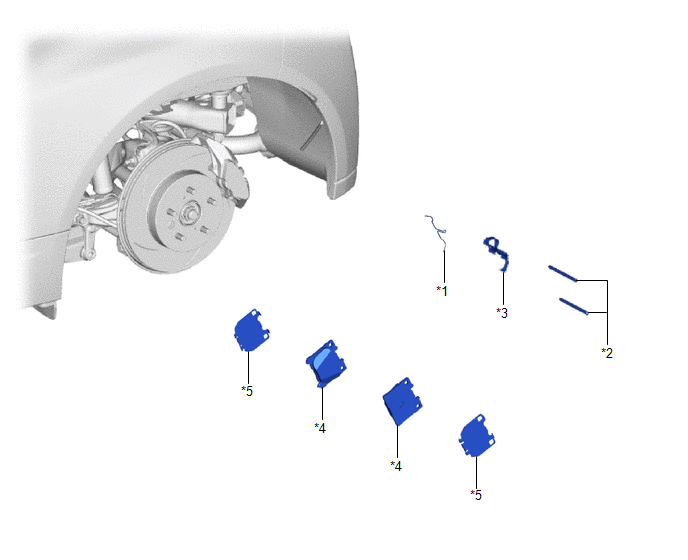

ILLUSTRATION

*1

REAR DISC BRAKE PIN HOLD CLIP

*2

REAR DISC BRAKE ANTI-RATTLE PIN

*3

REAR DISC BRAKE ANTI-RATTLE SPRING

*4

REAR DISC BRAKE PAD

*5

REAR DISC BRAKE ANTI-SQUEAL SHIM

-

-
