PARTS LOCATION

ILLUSTRATION

*1

SEAT HEATER SWITCH LH

*2

SEAT HEATER SWITCH RH

*3

POWER DISTRIBUTION BOX ASSEMBLY

-

-

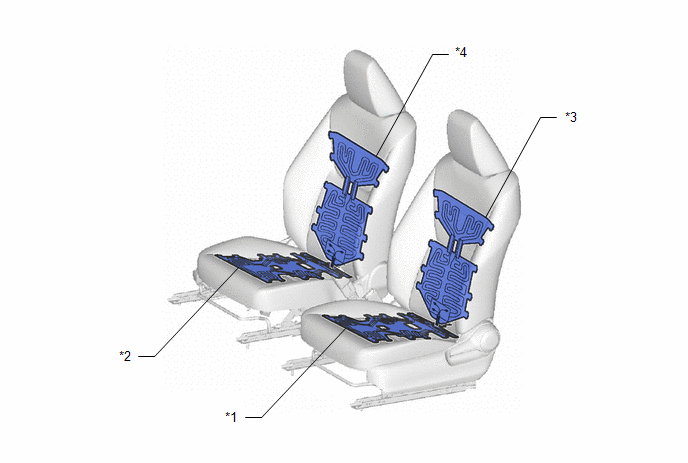

ILLUSTRATION

*1

FRONT SEAT CUSHION HEATER ASSEMBLY LH

*2

FRONT SEAT CUSHION HEATER ASSEMBLY RH

*3

FRONT SEATBACK HEATER ASSEMBLY LH

*4

FRONT SEATBACK HEATER ASSEMBLY RH
