Toyota Yaris: Air Conditioning System / Parts Location
PARTS LOCATION

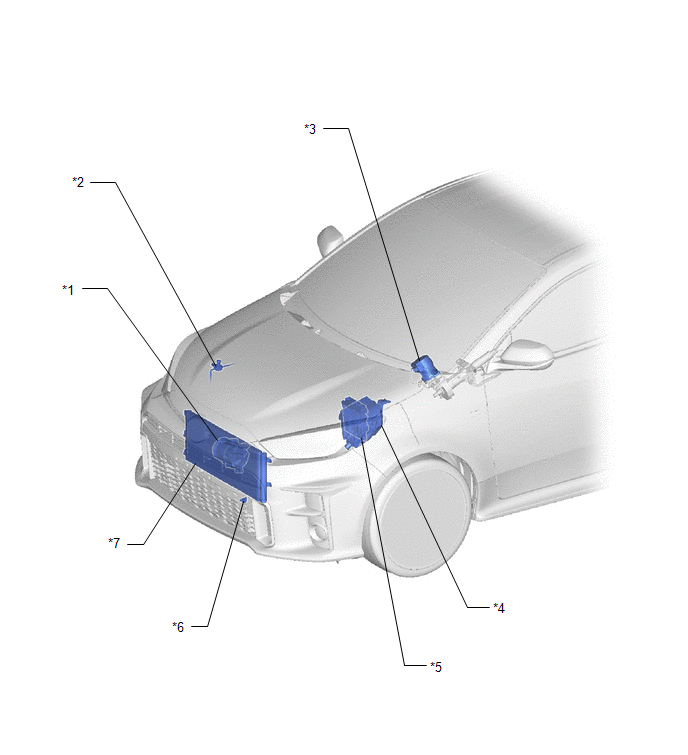

ILLUSTRATION
| *1 | COMPRESSOR WITH PULLEY ASSEMBLY | *2 | AIR CONDITIONER PRESSURE SENSOR |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE |
| *5 | ECM | *6 | THERMISTOR ASSEMBLY |
| *7 | COOLER CONDENSER ASSEMBLY | - | - |

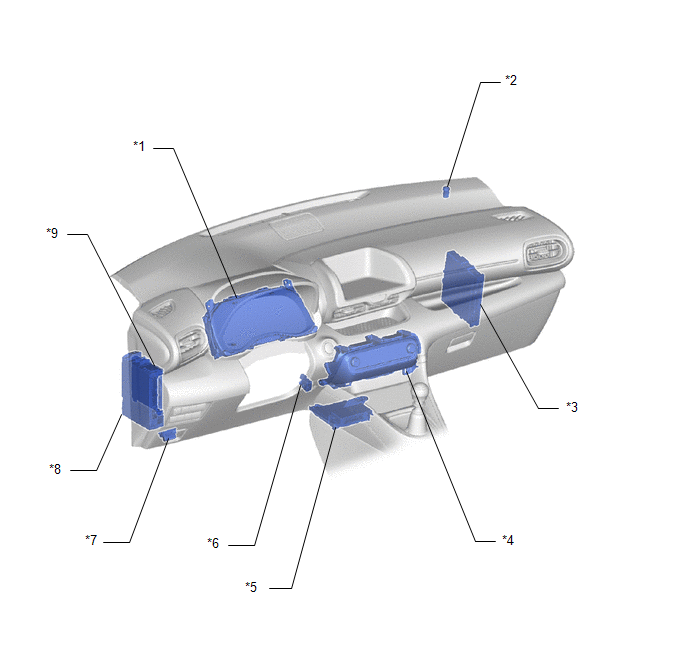

ILLUSTRATION
| *1 | COMBINATION METER ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | ENGINE STOP AND START ECU | *4 | AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | COOLER THERMISTOR (ROOM TEMPERATURE SENSOR) |
| *7 | DLC3 | *8 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-B NO. 2 FUSE - HTR FUSE |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |

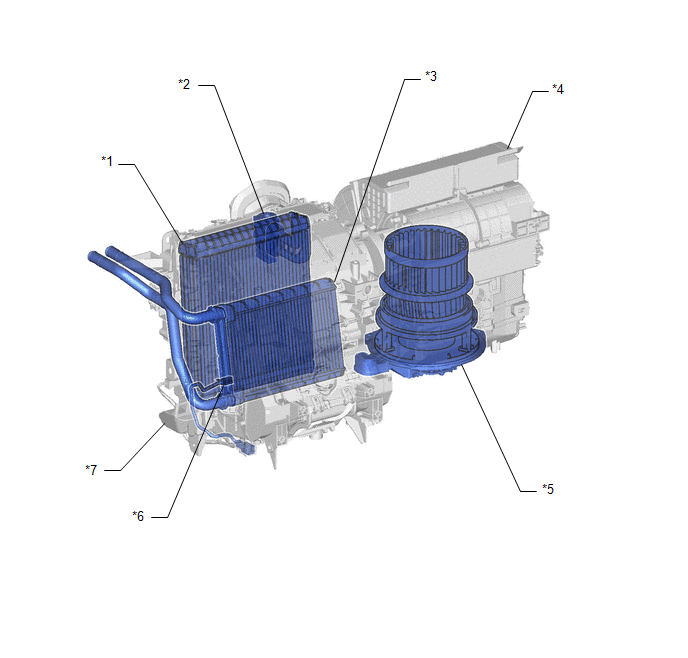

ILLUSTRATION
| *1 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | *2 | COOLER EXPANSION VALVE |
| *3 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *4 | BLOWER ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | NO. 1 COOLER THERMISTOR |
| *7 | AIR CONDITIONING RADIATOR ASSEMBLY | - | - |

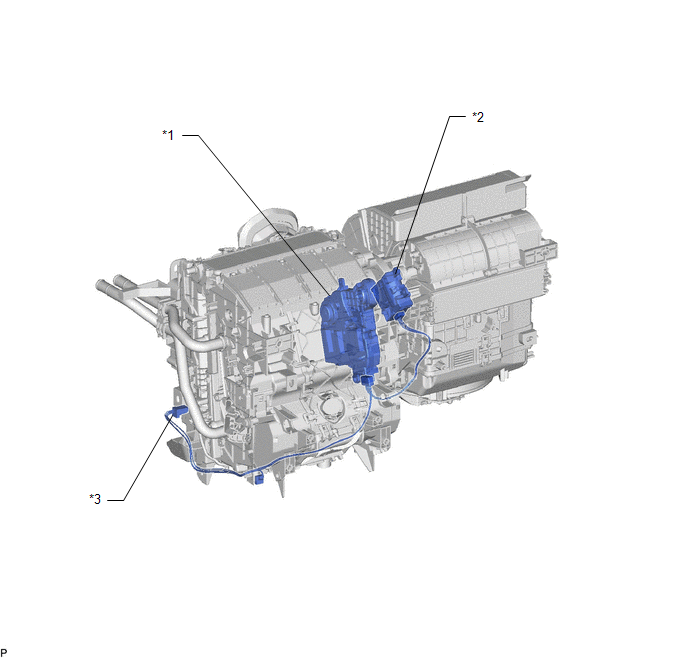

ILLUSTRATION
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY |
| *3 | AIR CONDITIONING HARNESS ASSEMBLY | - | - |
Precaution
PRECAUTION DO NOT HANDLE REFRIGERANT IN AN ENCLOSED AREA OR NEAR AN OPEN FLAME
*a Charging Cylinder ALWAYS WEAR EYE PROTECTION BE CAREFUL NOT TO GET LIQUID REFRIGERANT IN YOUR EYES OR ON YOUR SKIN
If liquid refrigerant gets in your eyes or on your skin...
System Diagram
S..
