PARTS LOCATION

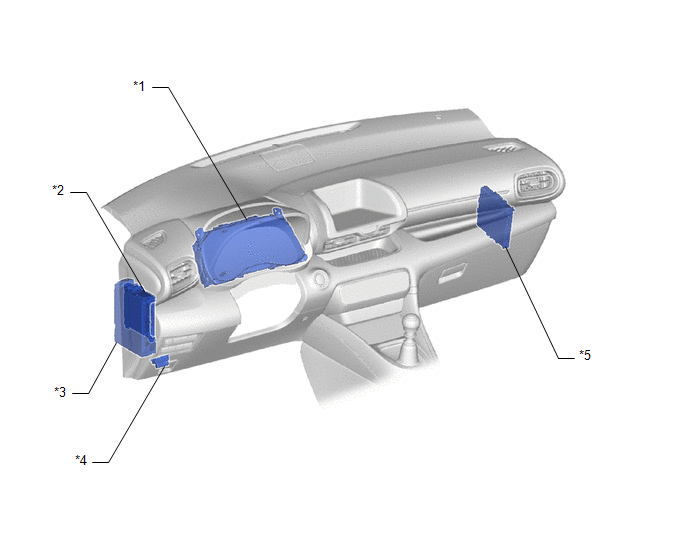

ILLUSTRATION

*1

COMBINATION METER ASSEMBLY

*2

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*3

POWER DISTRIBUTION BOX ASSEMBLY

- DOOR F/R FUSE

- DOOR F/L FUSE

- DOOR R/R FUSE

- DOOR R/L FUSE

- ECU-B NO. 2 FUSE

*4

DLC3

*5

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

-

-

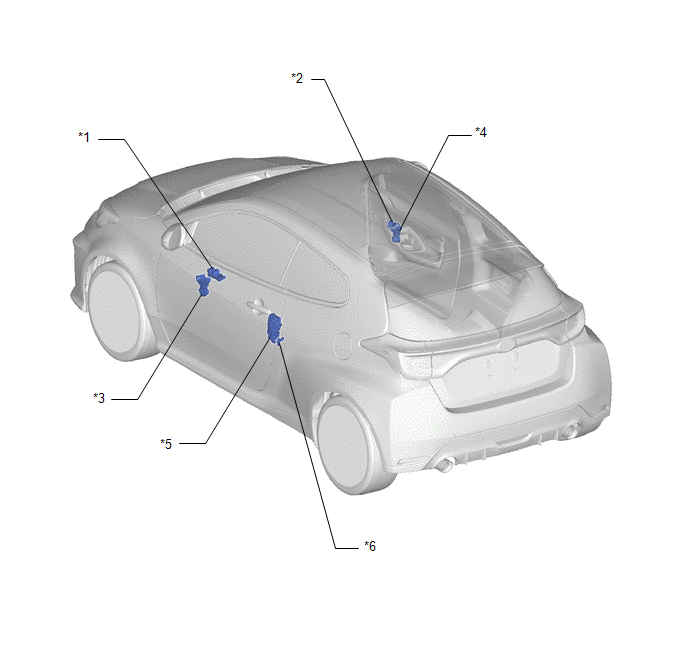

ILLUSTRATION

*1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

*2

POWER WINDOW REGULATOR SWITCH ASSEMBLY

*3

POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door)

*4

POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door)

*5

FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

*6

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

    Precaution

    PRECAUTION POWER WINDOW CONTROL SYSTEM PRECAUTIONS NOTICE: The power window control system uses the LIN communication system and CAN communication system...
