Toyota Yaris: Power Mirror Control System / Parts Location
PARTS LOCATION
ILLUSTRATION

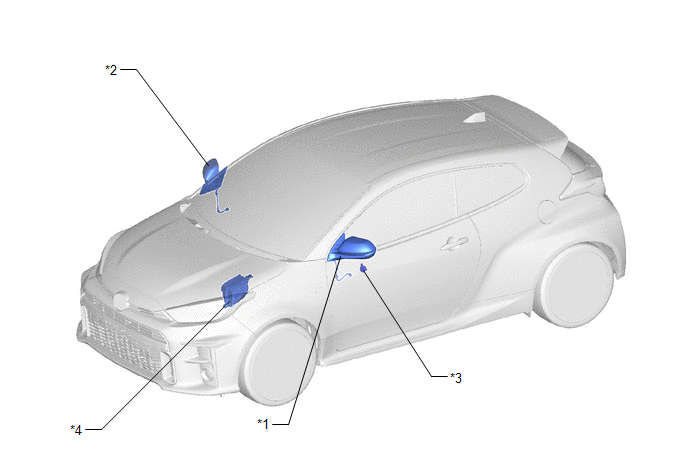

| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR RH |
| *3 | OUTER MIRROR SWITCH ASSEMBLY | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE |
ILLUSTRATION

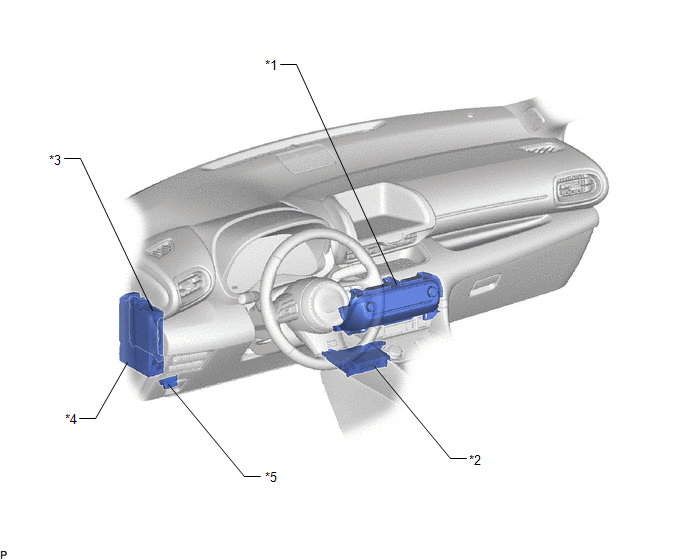

| *1 | AIR CONDITIONING CONTROL ASSEMBLY - REAR WINDOW DEFOGGER SWITCH | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-ACC FUSE - MIR HTR FUSE |
| *5 | DLC3 | - | - |
System Diagram
