PARTS LOCATION

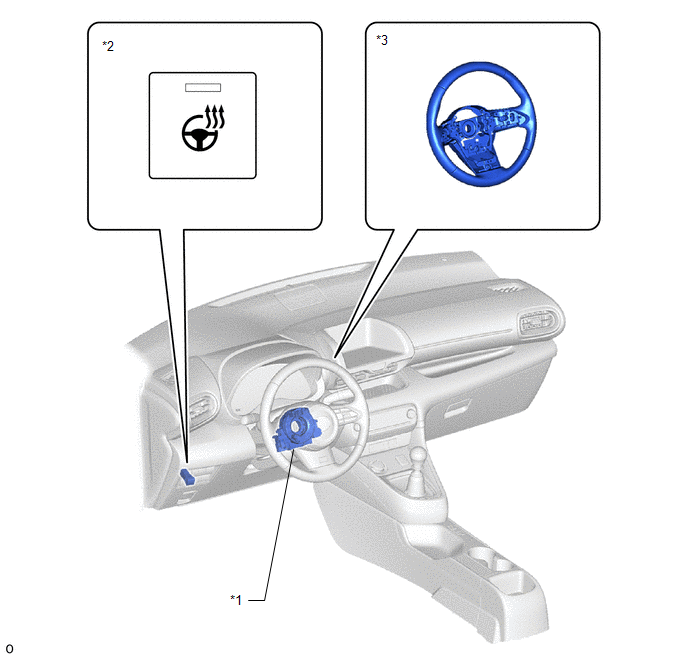

ILLUSTRATION

*1

SPIRAL CABLE SUB-ASSEMBLY

*2

STEERING HEATER SWITCH

*3

STEERING WHEEL ASSEMBLY

- STEERING WHEEL HEATER UNIT

-

-

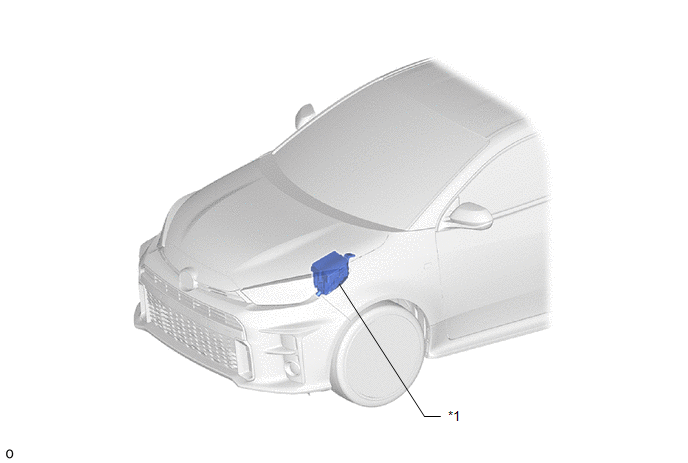

ILLUSTRATION

*1

NO. 3 ENGINE ROOM RELAY BLOCK

- ECU-IGP NO. 3 FUSE

- STRG-HTR FUSE

- STRG-HTR RELAY

-

-
