PARTS LOCATION

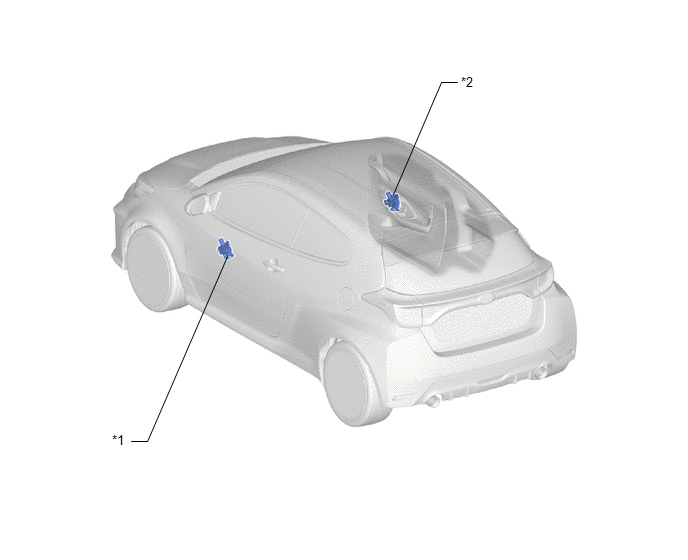

ILLUSTRATION

*1

FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR)

*2

FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR)

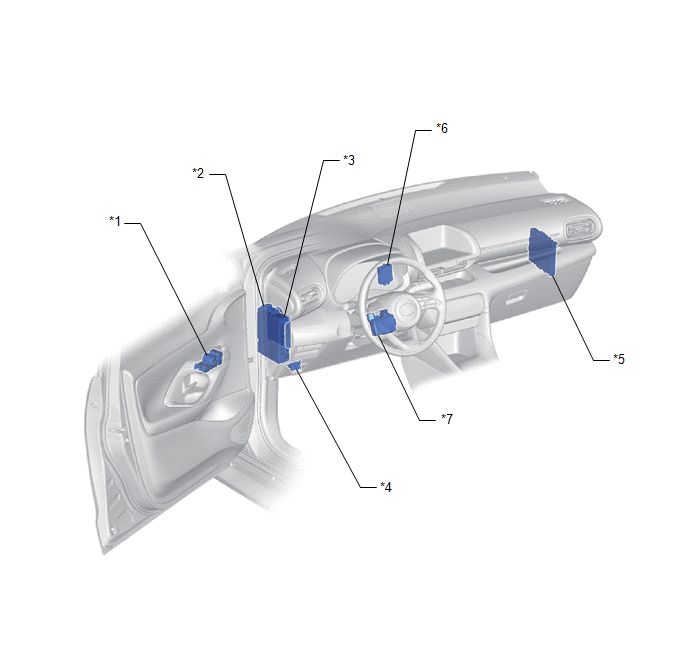

ILLUSTRATION

*1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

*2

POWER DISTRIBUTION BOX ASSEMBLY

- DOOR F/R FUSE

- DOOR F/L FUSE

- DOOR R/L FUSE

- DOOR R/R FUSE

- STRG LOCK FUSE

- ECU-B NO. 1 FUSE

- ECU-B NO. 2 FUSE

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

DLC3

*5

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*6

ID CODE BOX (IMMOBILISER CODE ECU)

*7

STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

-

-
