Toyota Yaris: Stop And Start System / Parts Location
PARTS LOCATION

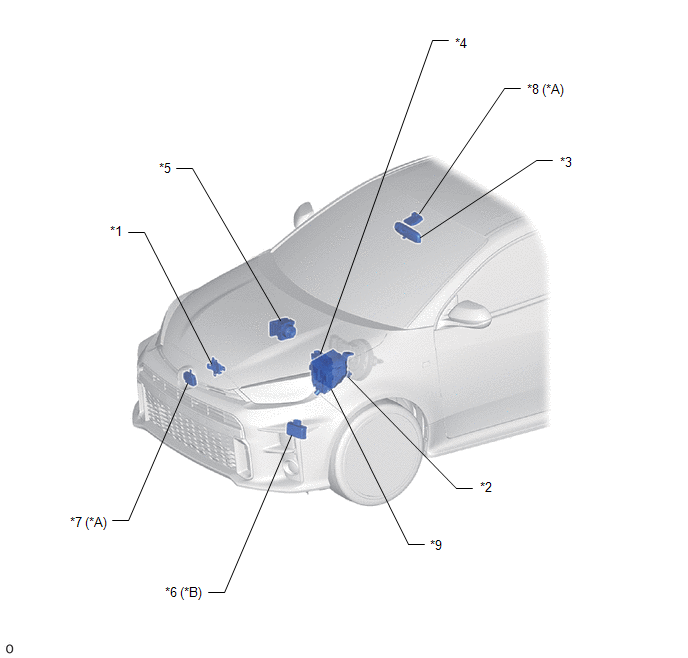

ILLUSTRATION
| *A | w/ Toyota Safety Sense | *B | w/ Active Noise Control System |
| *1 | ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY) | *2 | VACUUM SENSOR ASSEMBLY |
| *3 | INNER REAR VIEW MIRROR ASSEMBLY | *4 | ECM |
| *5 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *6 | EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | FORWARD RECOGNITION CAMERA |
| *9 | ENGINE ROOM RELAY BLOCK - EFI-MAIN NO. 1 FUSE - EFI NO. 3 FUSE - INJ FUSE - IGP MAIN FUSE - ECU-IGP NO. 3 FUSE - BBC NO. 1 FUSE - BBC NO. 2 FUSE - BBC NO. 3 FUSE - AMP NO. 2 FUSE - SUB R/B BATT FUSE - EFI MAIN NO. 1 RELAY - IGP RELAY | - | - |

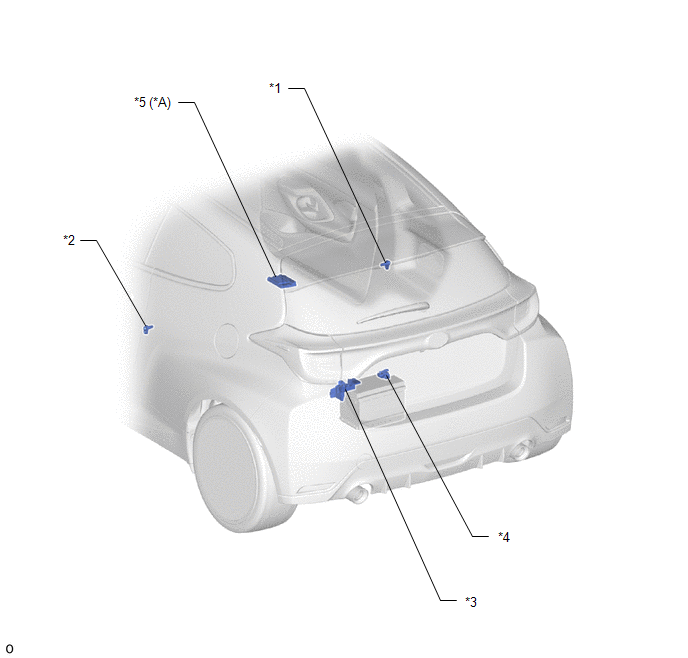

ILLUSTRATION
| *A | w/ Active Noise Control System | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
| *3 | FUSIBLE LINK BLOCK ASSEMBLY - ENG FUSE - R/B FR FUSE | *4 | BATTERY STATE SENSOR ASSEMBLY |
| *5 | STEREO COMPONENT EQUALIZER ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Headup Display System | - | - |
| *1 | CLUTCH START SWITCH ASSEMBLY (FOR LOWER) | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STOP AND START SYSTEM CANCEL SWITCH (COMBINATION SWITCH ASSEMBLY) | *4 | METER MIRROR SUB-ASSEMBLY |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | ENGINE STOP AND START ECU |
| *7 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *8 | AIRBAG SENSOR ASSEMBLY |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *10 | POWER STEERING ECU ASSEMBLY |
| *11 | COMBINATION METER ASSEMBLY | *12 | STOP LIGHT SWITCH ASSEMBLY |
| *13 | CLUTCH PEDAL STROKE SENSOR ASSEMBLY | - | - |
ILLUSTRATION
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | STEERING SENSOR | *4 | AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | DLC3 |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - AM2 FUSE - ECU-ACC FUSE - ECU-IGR NO. 1 FUSE - ECU-IGR NO. 4 FUSE - ACC RELAY - IGR NO. 1 RELAY | - | - |
ILLUSTRATION
| *1 | CRANKSHAFT POSITION SENSOR | *2 | ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | NEUTRAL POSITION SENSOR (NEUTRAL POSITION SWITCH) | *4 | STARTER ASSEMBLY |
| *5 | STARTER INRUSH CURRENT REDUCTION RELAY | - | - |
Precaution
PRECAUTION PRECAUTIONS WHEN INSPECTING STOP AND START SYSTEM NOTICE: When the audio and visual system volume is high, a fail-safe function may operate in order to maintain the operation of stop and start control...
