Toyota Yaris: Rear Spoiler / Disassembly

Toyota Yaris XP210 (2020-2023) Reapir and Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Spoiler / Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE CENTER STOP LIGHT ASSEMBLY

Click here

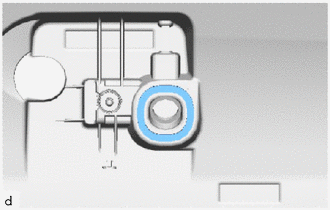

2. REMOVE NO. 1 REAR SPOILER PROTECTOR

(a) Remove the No. 1 rear spoiler protector.

3. REMOVE NO. 2 REAR SPOILER PROTECTOR

HINT:

Using the same procedure, remove every No. 2 rear spoiler protector.

(a) Remove the No. 2 rear spoiler protector.

4. REMOVE NO. 4 REAR SPOILER PROTECTOR

HINT:

Using the same procedure, remove every No. 4 rear spoiler protector.

(a) Remove the No. 4 rear spoiler protector.

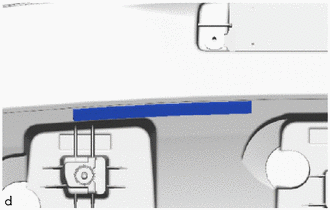

5. REMOVE REAR SPOILER SEAL

(a) Remove the rear spoiler seal.
