Toyota Yaris: Rear Spoiler / Removal

Toyota Yaris XP210 (2020-2023) Reapir and Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Spoiler / Removal

REMOVAL

PROCEDURE

1. REMOVE CENTER STOP LIGHT COVER

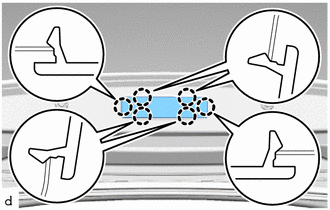

(a) Disengage the claws to remove the center stop light cover.

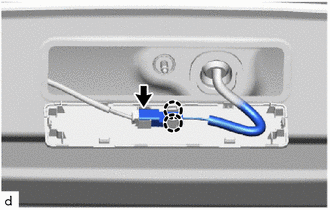

(b) Disengage the claws and disconnect the connector.

2. REMOVE REAR SPOILER HOLE COVER

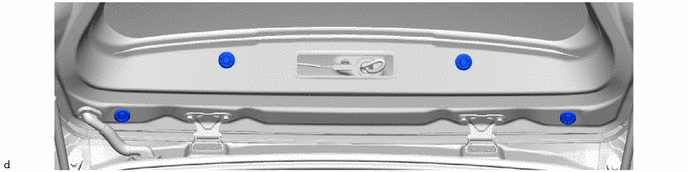

(a) Remove the 4 rear spoiler hole covers.

3. REMOVE REAR SPOILER ASSEMBLY

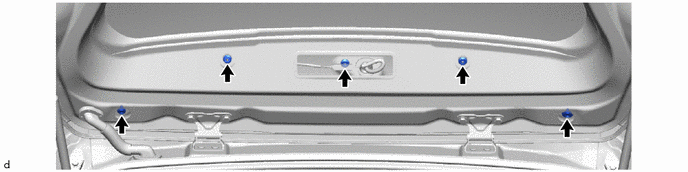

(a) Remove the 2 bolts and 3 nuts.

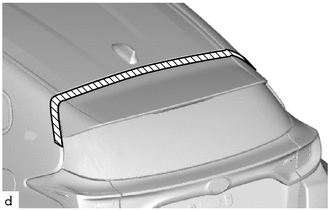

(b) Apply protective tape as shown in the illustration.

Protective Tape

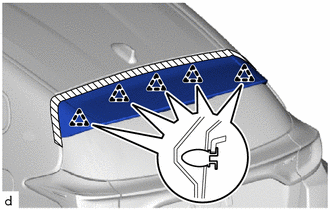

(c) Disengage the clips to remove the rear spoiler assembly.

    Components

    COMPONENTS ILLUSTRATION *1 REAR SPOILER ASSEMBLY *2 REAR SPOILER HOLE COVER *3 CENTER STOP LIGHT COVER - - N*m (kgf*cm, ft...

    Disassembly

    DISASSEMBLY PROCEDURE 1. REMOVE CENTER STOP LIGHT ASSEMBLY Click here 2. REMOVE NO. 1 REAR SPOILER PROTECTOR (a) Remove the No. 1 rear spoiler protector...
