COMPONENTS

ILLUSTRATION

*1

REAR SPOILER ASSEMBLY

*2

REAR SPOILER HOLE COVER

*3

CENTER STOP LIGHT COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

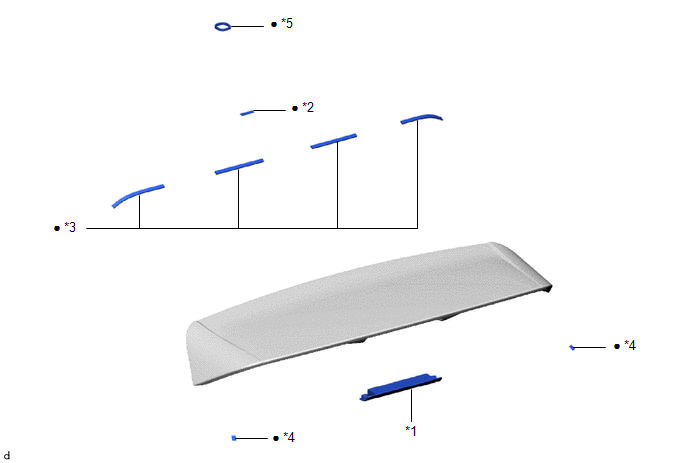

ILLUSTRATION

*1

CENTER STOP LIGHT ASSEMBLY

*2

NO. 1 REAR SPOILER PROTECTOR

*3

NO. 2 REAR SPOILER PROTECTOR

*4

NO. 4 REAR SPOILER PROTECTOR

*5

REAR SPOILER SEAL

-

-

Non-reusable part

-

-

    Rear Spoiler

    ..

    Removal

    REMOVAL PROCEDURE 1. REMOVE CENTER STOP LIGHT COVER (a) Disengage the claws to remove the center stop light cover. (b) Disengage the claws and disconnect the connector...
