Toyota Yaris: Fuel System / Parts Location
PARTS LOCATION

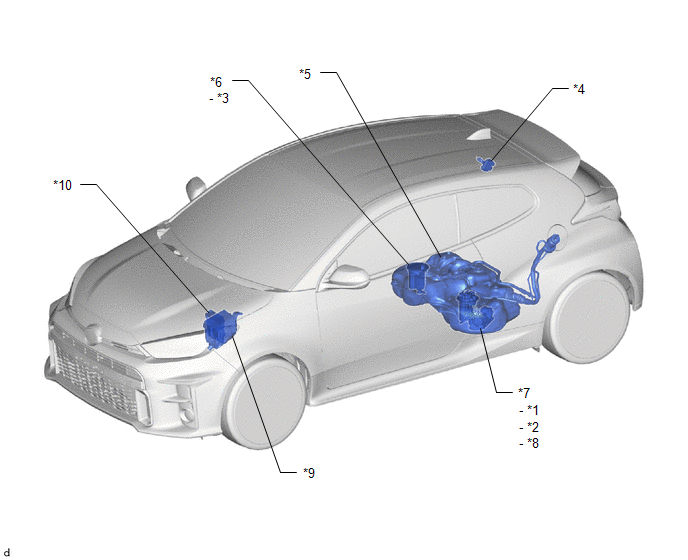

ILLUSTRATION
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *4 | FUEL PUMP CONTROL ECU |
| *5 | FUEL TANK ASSEMBLY | *6 | FUEL TANK VENT TUBE WITH SENDER GAUGE ASSEMBLY |
| *7 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *8 | FUEL MAIN VALVE ASSEMBLY |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK - EFI-MAIN NO. 1 RELAY - EFI-MAIN NO. 2 RELAY - INJ FUSE - EFI-MAIN NO. 1 FUSE - EFI-MAIN NO. 2 FUSE | *10 | ECM |

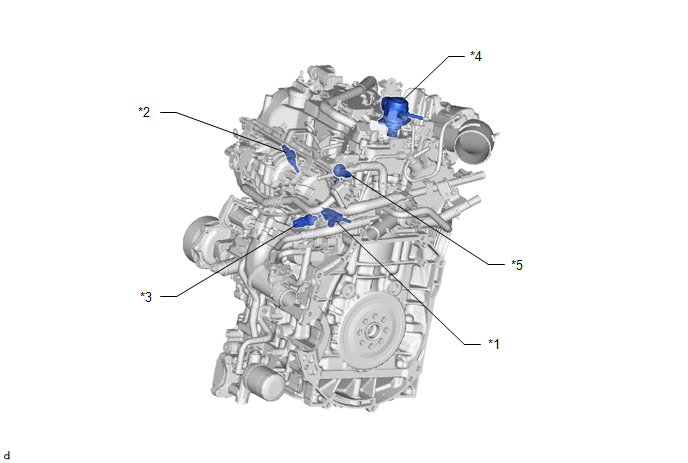

ILLUSTRATION
| *1 | DIRECT FUEL INJECTOR ASSEMBLY | *2 | PORT FUEL INJECTOR ASSEMBLY |
| *3 | FUEL PRESSURE SENSOR (for High Pressure) | *4 | FUEL PUMP ASSEMBLY (for High Pressure) |
| *5 | NO. 2 FUEL PRESSURE SENSOR (for Low Pressure) | - | - |
Precaution
PRECAUTION CAUTION:
Never perform work on fuel system components near any possible ignition sources.
Vaporized fuel could ignite, resulting in a serious accident...
