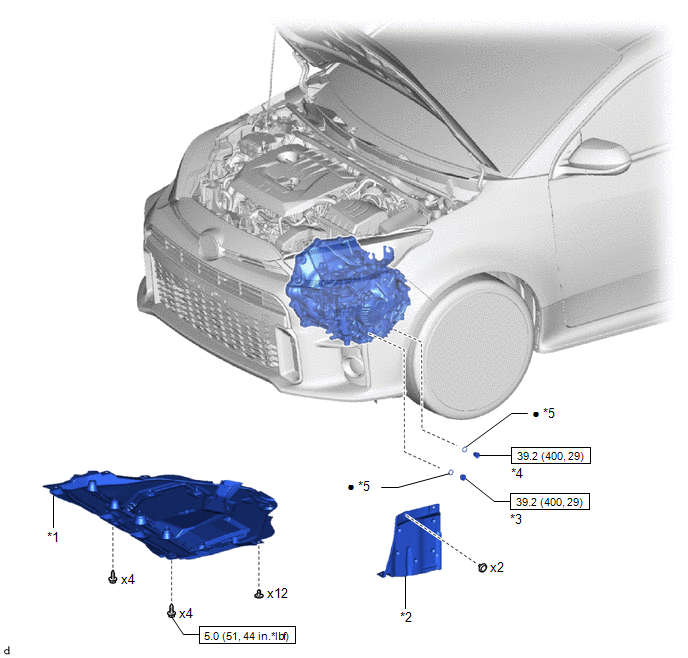

Components

COMPONENTS

ILLUSTRATION

*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	ENGINE UNDER COVER LH
*3	MANUAL TRANSMISSION FILLER PLUG	*4	MANUAL TRANSMISSION DRAIN PLUG
*5	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. INSPECT MANUAL TRANSAXLE OIL

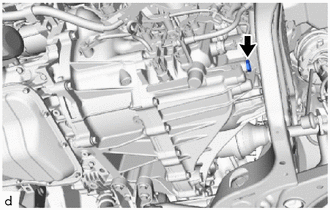

(a) Remove the manual transmission filler plug and gasket.

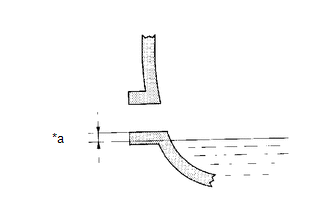

(b) Check that the oil level is between 0 and 5 mm (0.197 in.) from the bottom lip of the manual transmission filler plug opening.

NOTICE:

An excessively large or small amount of manual transaxle oil may cause problems.

*a	0 to 5 mm (0 to 0.197 in.)

(d) Install a new gasket and the manual transmission filler plug.

Torque:

39.2 N·m {400 kgf·cm, 29 ft·lbf}

3. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here
