Toyota Yaris: Ea67f (manual Transmission / Transaxle) / Manual Transaxle Oil Temperature Sensor
Components
COMPONENTS

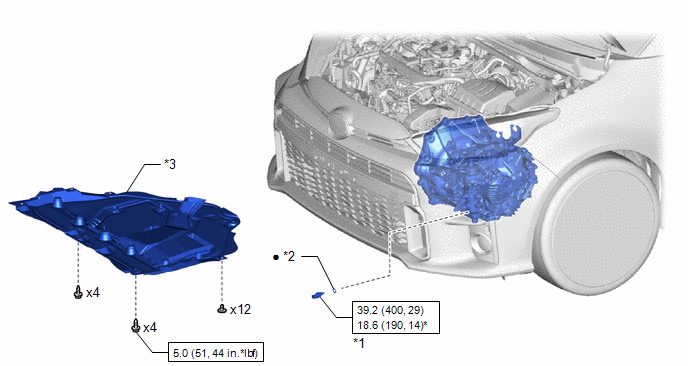

ILLUSTRATION
*1 | TEMPERAURE SENSOR | *2 | GASKET |
*3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
* | For use with SST | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
2. REMOVE TEMPERATURE SENSOR
(a) Disconnect the temperature sensor connector. | |

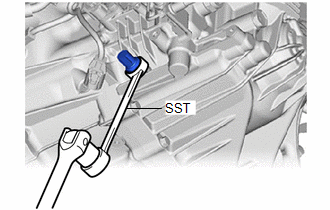

(b) Using SST, remove the temperature sensor and gasket from the manual transaxle assembly. SST: 09729-00220 | |
Inspection
INSPECTION
PROCEDURE
1. INSPECT TEMPERATURE SENSOR

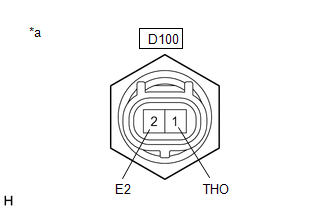

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection | Condition | Specified Condition | D100-1(THO) - D100-2(E2) | 20°C (68°F) | 0.9 to 30 kΩ | If the result is not as specified, replace the temperature sensor. |
| *a | Component without harness connected (Temperature Sensor) | | |
Installation
INSTALLATION
PROCEDURE
1. INSTALL TEMPERATURE SENSOR

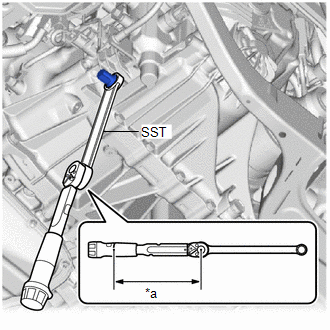

(a) Using SST, install a new gasket and the temperature sensor to the manual transaxle assembly. SST: 09729-00220 Torque: Specified Tightening Torque : 39.2 N·m {400 kgf·cm, 29 ft·lbf} HINT: -
Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Click here
-
When using SST (fulcrum length of 200 mm (7.87 in.))) + torque wrench (fulcrum length of 180 mm (7.09 in.))): 18.6 N*m (190 kgf*cm, 14 ft.*lbf)
|
| *a | Torque Wrench Fulcrum Length | | |
(b) Connect the temperature sensor connector.
2. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
