Toyota Yaris: Vehicle Stability Control System / Left Rear Wheel Speed Sensor Circuit Short to Battery (C050C12)

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Brake / Brake Control / Dynamic Control Systems / Vehicle Stability Control System / Left Rear Wheel Speed Sensor Circuit Short to Battery (C050C12)

DESCRIPTION

Refer to DTC C050C1F.

Click here

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	DTC Output from
C050C12	Left Rear Wheel Speed Sensor Circuit Short to Battery	The speed sensor short signal is ON continuously for 0.5 seconds or more.	Rear speed sensor LH Wire harness and connector Skid control ECU (brake actuator assembly)	Brake

WIRING DIAGRAM

Refer to DTC C050C1F.

Click here

CAUTION / NOTICE / HINT

NOTICE:

After replacing the skid control ECU (brake actuator assembly), perform "Calibration".
Click here
After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.
Click here

PROCEDURE

1.	CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

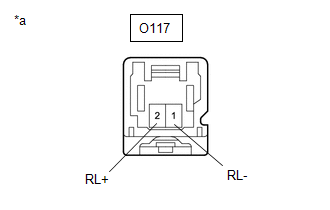

*a	Front view of wire harness connector (to Rear Speed Sensor LH)

(b) Disconnect the O117 rear speed sensor LH connector.

OK:

No deformation or corrosion.

(d) Turn the ignition switch to ON.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
O117-2 (RL+) - O117-1 (RL-)	Ignition switch ON	11 to 14 V

REPLACE REAR SPEED SENSOR LH

2.	CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Turn the ignition switch off.

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

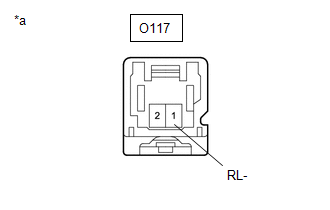

*a	Front view of wire harness connector (to Rear Speed Sensor LH)

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
O117-1 (RL-) - Body ground	Always	Below 1.5 V

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.	CHECK HARNESS AND CONNECTOR (REAR SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O117-2 (RL+) or A108-29 (RL+) - O117-1 (RL-) or A108-28 (RL-)	Always	10 kΩ or higher

REPLACE BRAKE ACTUATOR ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR
