INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL REAR SEAT OUTER BELT ASSEMBLY

(a) Inspect the rear seat outer belt assembly.

Click here

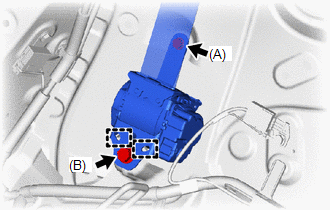

(b) Engage the guides to temporarily install the rear outer belt assembly.

(c) Temporarily install the 2 bolts.

(d) Tighten bolt (A) and then bolt (B).

Torque:

Bolt (A) :

12.5 N·m {127 kgf·cm, 9 ft·lbf}

Bolt (B) :

42 N·m {428 kgf·cm, 31 ft·lbf}

(e) Install the shoulder anchor of the rear seat outer belt assembly with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

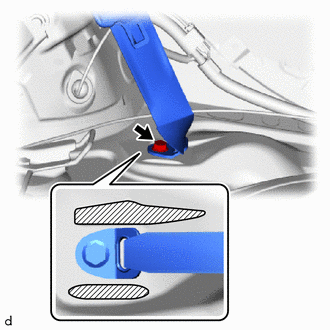

(f) Connect the floor anchor of the rear seat outer belt assembly with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the floor anchor of the rear seat outer belt assembly to overlap the protruding parts of the vehicle body.

Protruding Part

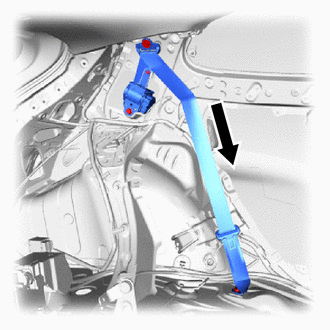

(g) Check that the ELR locks.

NOTICE:

This check should be performed with the rear seat outer belt assembly installed to the vehicle.

(1) With the rear seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

(h) Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.

2. INSTALL INNER ROOF SIDE GARNISH

Click here

3. CONNECT REAR SEAT OUTER BELT ASSEMBLY

(a) Connect the floor anchor of the rear seat outer belt assembly with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the floor anchor of the rear seat outer belt assembly to overlap the protruding parts of the vehicle body.

Protruding Part

4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY

Click here

5. INSTALL QUARTER TRIM PANEL ASSEMBLY

Click here

6. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Click here

7. INSTALL LAP BELT OUTER ANCHOR COVER

Click here

8. INSTALL FRONT DOOR SCUFF PLATE

Click here

9. INSTALL DECK TRIM REAR COVER

Click here

10. INSTALL DECK FLOOR BOX LH

Click here

11. INSTALL DECK FLOOR BOX RH

Click here

12. INSTALL DECK BOARD ASSEMBLY

Click here

13. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

Click here

14. INSTALL REAR SEAT CUSHION LOCK HOOK

Click here

15. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Click here

16. INSTALL REAR SEATBACK ASSEMBLY

Click here
