Toyota Yaris: Front Seatback Heater / Installation
INSTALLATION
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
- Use the same procedure for the driver side and front passenger side.
- The procedure listed below is for the driver side.
PROCEDURE
1. INSTALL FRONT SEATBACK HEATER ASSEMBLY

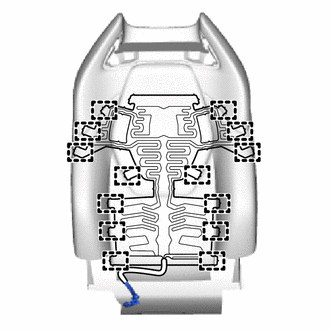

| (a) for Sporty Seat Type: (1) Install the front seatback heater assembly to the separate type front seatback cover with 14 new tag pins. |
|

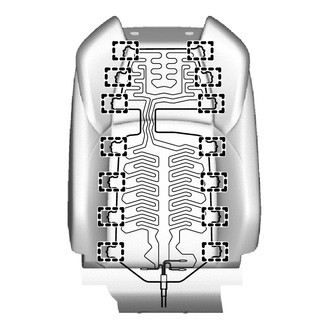

| (b) for Sports Seat Type: (1) Install the front seatback heater assembly to the separate type front seatback cover with 14 new tag pins. |
|
2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
Click here
3. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
Click here
4. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY
Click here
5. INSTALL FRONT SEATBACK BEZEL (for Sports Seat Type)
Click here
6. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Click here
7. INSTALL FRONT SEAT INNER CUSHION SHIELD
Click here
8. INSTALL FRONT SEAT CUSHION SHIELD
Click here
9. INSTALL SEAT ADJUSTER COVER CAP (for Driver Side)
Click here
10. INSTALL RECLINING ADJUSTER RELEASE HANDLE
Click here
11. INSTALL NO.1 RECLINING HINGE COVER
Click here
12. INSTALL VERTICAL ADJUSTING HANDLE (for Driver Side)
Click here
13. INSTALL FRONT SEAT INNER BELT ASSEMBLY
Click here
Inspection
INSPECTION PROCEDURE 1. INSPECT FRONT SEATBACK HEATER ASSEMBLY LH (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
