INSPECTION

PROCEDURE

1. INSPECT FRONT SEATBACK HEATER ASSEMBLY LH

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the front seatback heater assembly LH.
2 - 1	Seat heater temperature 20°C (68°F)	1.67 to 2.05 Ω
3 - 1	Seat heater temperature 20°C (68°F)	3.29 to 4.02 Ω

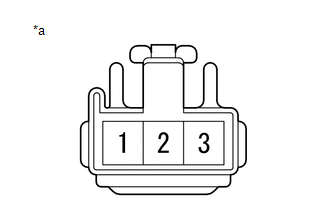

*a	Component without harness connected (Front Seatback Heater Assembly LH)

2. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the front seatback heater assembly RH.
2 - 1	Seat heater temperature 20°C (68°F)	1.67 to 2.05 Ω
3 - 1	Seat heater temperature 20°C (68°F)	3.29 to 4.02 Ω

*a	Component without harness connected (Front Seatback Heater Assembly RH)
