Toyota Yaris: Wiper And Washer System / Front Wiper Motor Circuit
DESCRIPTION
The windshield wiper relay assembly controls the windshield wiper motor assembly through this circuit.

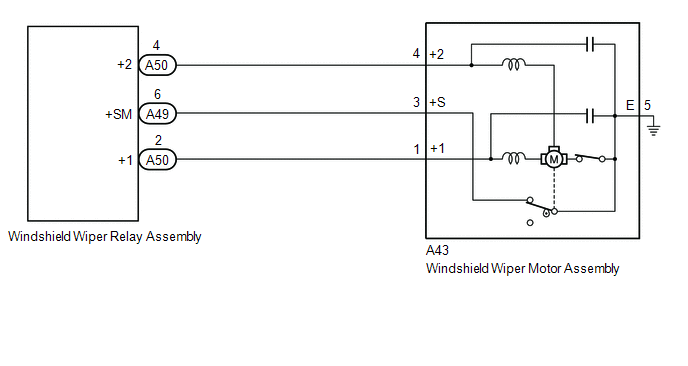

WIRING DIAGRAM
PROCEDURE
| 1. | PERFORM ACTIVE TEST USING GTS (FRONT WIPER LO OPERATION / FRONT WIPER HI OPERATION) |
(a) Perform the Active Test according to the display on the GTS.
Body Electrical > Main Body > Active Test| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Front Wiper Lo Operation | Function to operate the windshield wiper motor assembly in LO | OFF or ON | - |
| Front Wiper Hi Operation | Function to operate the windshield wiper motor assembly in HI | OFF or ON | - |
| Tester Display |
|---|
| Front Wiper Lo Operation |
| Tester Display |
|---|
| Front Wiper Hi Operation |
OK:
Windshield wiper motor assembly operates normally.
| OK |
.gif) | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
|
.gif)
| 2. | INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY |
Click here
.gif)
| NG |
| REPLACE WINDSHIELD WIPER MOTOR ASSEMBLY |
|
| 3. | CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - WINDSHIELD WIPER MOTOR ASSEMBLY) |
(a) Disconnect the A50 and A49 windshield wiper relay assembly connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A50-2 (+1) - A43-1 (+1) | Always | Below 1 Ω |
| A50-4 (+2) - A43-4 (+2) | Always | Below 1 Ω |
| A49-6 (+SM) - A43-3 (+S) | Always | Below 1 Ω |
| A50-2 (+1) or A43-1 (+1) - Body ground | Always | 10 kΩ or higher |
| A50-4 (+2) or A43-4 (+2) - Body ground | Always | 10 kΩ or higher |
| A49-6 (+SM) or A43-3 (+S) - Body ground | Always | 10 kΩ or higher |
| NG |
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 4. | CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER MOTOR ASSEMBLY - BODY GROUND) |

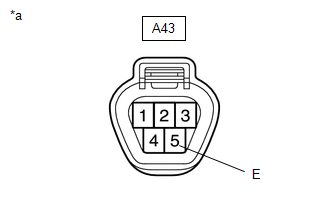

| *a | Front view of wire harness connector (to Windshield Wiper Motor Assembly) |
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A43-5 (E) - Body ground | Always | Below 1 Ω |
| OK |
| REPLACE WINDSHIELD WIPER RELAY ASSEMBLY |
| NG |
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
