DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE LICENSE PLATE LIGHT PACKING

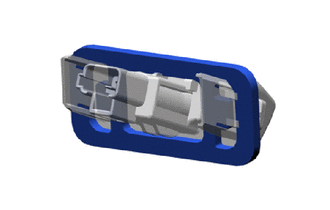

(a) Remove the license plate light packing.

2. REMOVE LICENSE PLATE LIGHT LENS

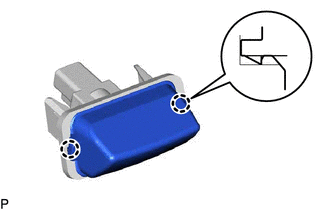

(a) Disengage the claws to remove the license plate light lens.

3. REMOVE LICENSE PLATE LIGHT BULB

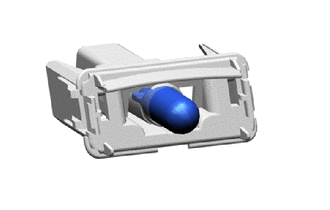

(a) Remove the license plate light bulb.
