Toyota Yaris: License Plate Light Assembly / Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
-
Use the same procedure for the RH and LH sides.
-
The procedure listed below is for the LH side.
PROCEDURE
1. INSTALL LICENSE PLATE LIGHT BULB

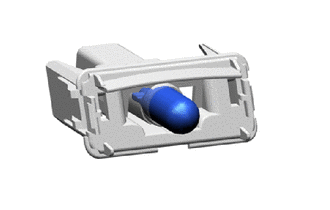

(a) Install the license plate light bulb. | |
2. INSTALL LICENSE PLATE LIGHT LENS

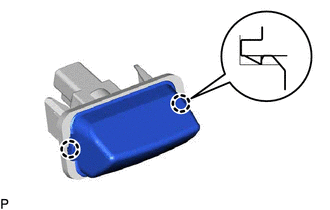

(a) Engage the claws to install the license plate light lens. | |
3. INSTALL LICENSE PLATE LIGHT PACKING
(a) Install a new license plate light packing. | |
DISASSEMBLY CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
PROCEDURE 1...
INSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
PROCEDURE 1...
