Toyota Yaris: Water Pump / Components
COMPONENTS

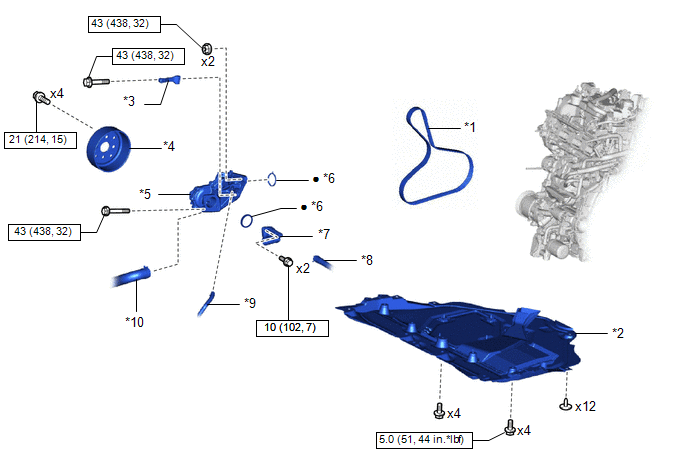

ILLUSTRATION
| *1 | FAN AND GENERATOR V BELT | *2 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *3 | AIR CONNECTOR STAY | *4 | WATER PUMP PULLEY |
| *5 | WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY | *6 | GASKET |
| *7 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | *8 | NO. 4 WATER BY-PASS HOSE |
| *9 | NO. 5 WATER BY-PASS HOSE | *10 | NO. 2 RADIATOR HOSE |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
Water Pump
..
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the engine water pump assembly (water inlet housing) removal/installation are shown below...
