Toyota Yaris: Water Pump / Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the engine water pump assembly (water inlet housing) removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replacement Part or Procedure | Necessary Procedure | Effect/Inoperative when not Performed | Link |
|---|---|---|---|
| Cleaning the deposits from the throttle body with motor assembly | Inspection after repair |
|
|
PROCEDURE
1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
2. DRAIN ENGINE COOLANT
Click here
3. REMOVE INTAKE MANIFOLD
Click here
4. REMOVE WATER PUMP PULLEY

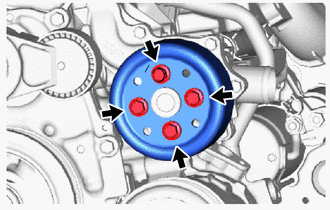

| (a) Loosen the 4 bolts holding the water pump pulley. |
|
(b) Remove the fan and generator V-belt.
Click here
(c) Remove the 4 bolts and water pump pulley.
5. REMOVE GENERATOR ASSEMBLY
Click here
6. REMOVE NO. 5 WATER BY-PASS HOSE
| (a) Slide the clip and disconnect the No. 5 water by-pass hose from the water inlet with water pump housing sub-assembly. |
|
7. REMOVE NO. 2 RADIATOR HOSE

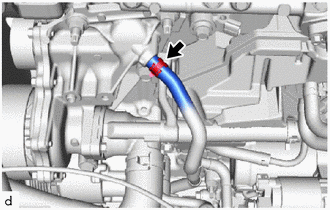

| (a) Slide the clip and disconnect the No. 2 radiator hose from the water inlet. |
|
8. REMOVE AIR CONNECTOR STAY

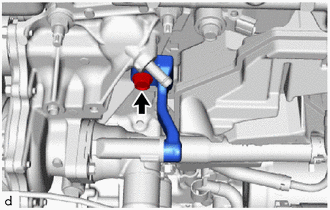

| (a) Remove the bolt and air connector stay from the water inlet with water pump housing sub-assembly. |
|
9. REMOVE WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY

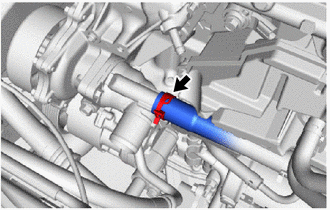

| (a) Slide the clip and disconnect the No. 4 water by-pass hose from the water inlet with thermostat sub-assembly. NOTICE:
|
|

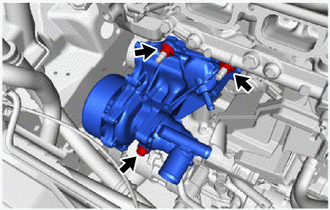

| (b) Remove the bolt, 2 nuts and water inlet with water pump housing sub-assembly from the cylinder block sub-assembly. |
|
| (c) Remove the gasket from the water inlet with water pump housing sub-assembly. |
|
10. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
Click here
Components
COMPONENTS ILLUSTRATION
*1 FAN AND GENERATOR V BELT *2 NO. 1 ENGINE UNDER COVER ASSEMBLY *3 AIR CONNECTOR STAY *4 WATER PUMP PULLEY *5 WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY *6 GASKET *7 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY *8 NO...
Installation
INSTALLATION PROCEDURE 1. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY Click here
2. INSTALL WATER INLET WITH WATER PUMP HOUSING SUB-ASSEMBLY (a) Install a new gasket to the water inlet with water pump housing sub-assembly...
