Toyota Yaris: Rear Axle Carrier / Components
COMPONENTS

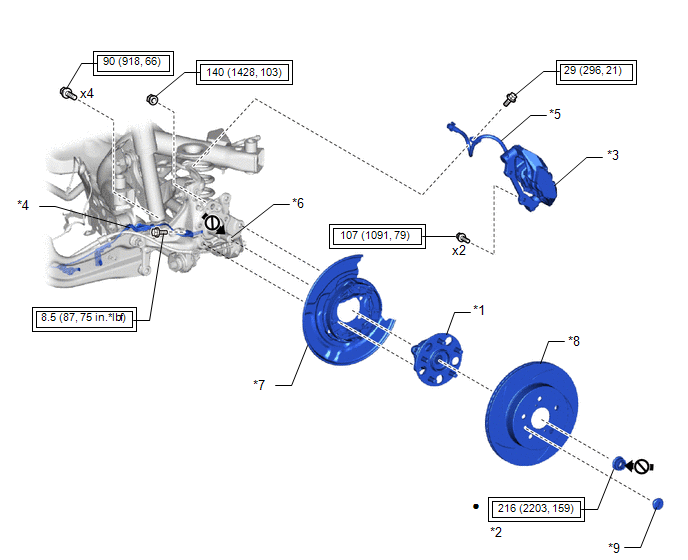

ILLUSTRATION
| *1 | REAR AXLE HUB AND BEARING ASSEMBLY | *2 | REAR AXLE SHAFT NUT |
| *3 | REAR DISC BRAKE CALIPER ASSEMBLY | *4 | REAR SPEED SENSOR |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR DRIVE SHAFT ASSEMBLY |
| *7 | REAR BRAKE | *8 | REAR DISC |
| *9 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | Do not apply lubricants to the threaded parts | - | - |

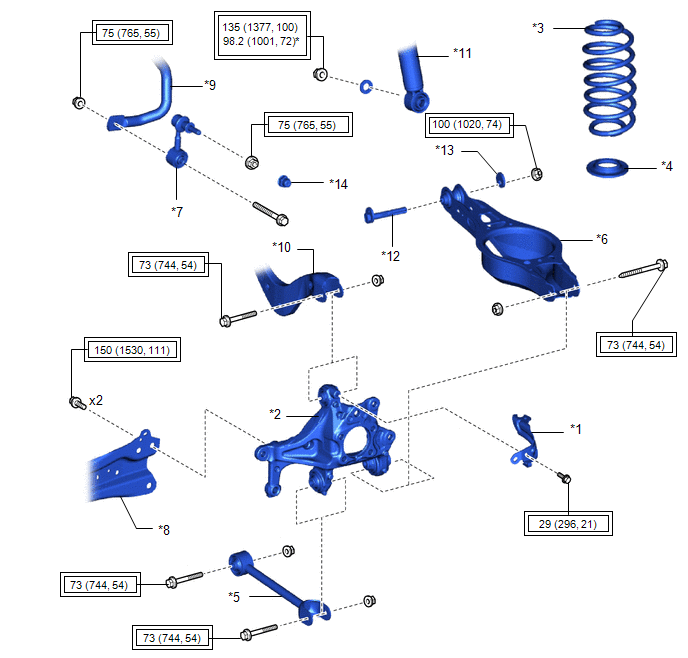

ILLUSTRATION
| *1 | FLEXIBLE HOSE BRACKET | *2 | REAR AXLE CARRIER SUB-ASSEMBLY |
| *3 | REAR COIL SPRING | *4 | REAR LOWER COIL SPRING INSULATOR |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *6 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *7 | REAR STABILIZER LINK ASSEMBLY | *8 | REAR TRAILING ARM ASSEMBLY |
| *9 | REAR STABILIZER BAR | *10 | REAR UPPER CONTROL ARM ASSEMBLY |
| *11 | REAR SHOCK ABSORBER ASSEMBLY | *12 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *13 | NO. 2 CAMBER ADJUST CAM | *14 | CAP |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle carrier sub-assembly removal/ installation are shown below...
