Toyota Yaris: Outer Rear View Mirror / Components
COMPONENTS

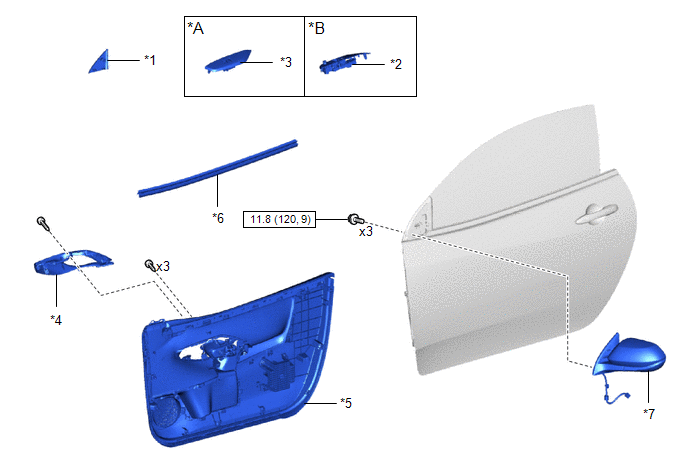

ILLUSTRATION
| *A | for Front Passenger Side | *B | for Driver Side |
| *1 | FRONT DOOR LOWER FRAME BRACKET GARNISH | *2 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL |
| *3 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL | *4 | FRONT DOOR TRIM GARNISH |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *6 | FRONT DOOR GLASS INNER WEATHERSTRIP |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

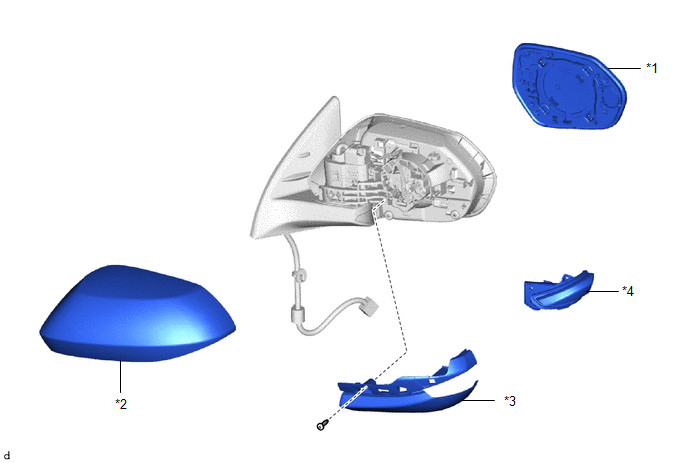

ILLUSTRATION
| *1 | OUTER MIRROR | *2 | OUTER MIRROR COVER |
| *3 | OUTER MIRROR LOWER COVER | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY |

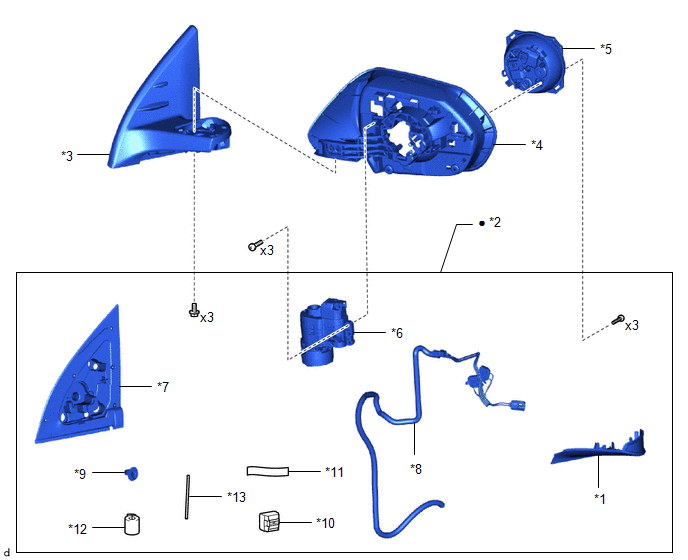

ILLUSTRATION
| *1 | OUTER MIRROR HOLE COVER | *2 | OUTER MIRROR RETRACTOR ASSEMBLY |
| *3 | BASE | *4 | HOUSING |
| *5 | POWER UNIT ASSEMBLY | *6 | OUTER MIRROR RETRACTOR |
| *7 | GASKET | *8 | WIRE HARNESS |
| *9 | CLIP | *10 | ADAPTER |
| *11 | VINYL TAPE | *12 | TAPE |
| *13 | BAR | - | - |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1...
