Toyota Yaris: Active Noise Control System / Front Door Right Speaker Circuit Actuator Stuck (B1AAF71)
DESCRIPTION
This DTC is output when a malfunction occurs in the right side front speaker system.
| DTC No. | Detection Item | 0 DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B1AAF71 | Front Door Right Speaker Circuit Actuator Stuck | When starting the system from IG OFF → ACC ON, the stereo component equalizer assembly detects a malfunction in the right side front speaker system* |
|
HINT:
*: To prevent false positives, fault monitoring is not performed in the following conditions:
- Auxiliary battery voltage has decreased to 9.5 V or less.
- Less than 3 seconds have elapsed after auxiliary battery voltage returned to normal.

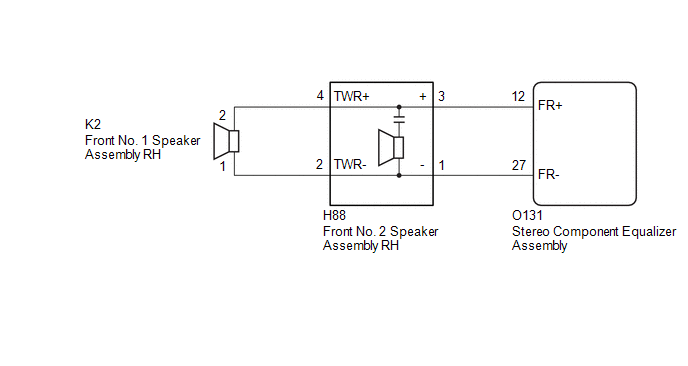

WIRING DIAGRAM
PROCEDURE
| 1. | CLEAR DTC |
(a) Clear the DTCs.
Body Electrical > Active Noise Control > Clear DTCs
|
| 2. | CHECK FOR DTC |
(a) Check for DTCs.
Body Electrical > Active Noise Control > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B1AAF71 is not output | A |
| DTC B1AAF71 is output | B |
| A |
 | USE SIMULATION METHOD TO CHECK |
|
| 3. | CHECK HARNESS AND CONNECTOR (FRONT NO. 2 SPEAKER ASSEMBLY RH - STEREO COMPONENT EQUALIZER ASSEMBLY) |
(a) Disconnect the H88 front No. 2 speaker assembly RH connector.
(b) Disconnect the O131 stereo component equalizer assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| H88-3 (+) - O131-12 (FR+) | Always | Below 1 Ω |
| H88-1 (-) - O131-27 (FR-) | Always | Below 1 Ω |
| H88-3 (+) - Body ground | Always | 10 kΩ or higher |
| H88-1 (-) - Body ground | Always | 10 kΩ or higher |
| NG |
 | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 4. | CHECK HARNESS AND CONNECTOR (FRONT NO. 1 SPEAKER ASSEMBLY RH - FRONT NO. 2 SPEAKER ASSEMBLY RH) |
(a) Disconnect the K2 front No. 1 speaker assembly RH connector.
(b) Disconnect the H88 front No. 2 speaker assembly RH connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| K2-2 - H88-4 (TWR+) | Always | Below 1 Ω |
| K2-1 - H88-2 (TWR-) | Always | Below 1 Ω |
| K2-2 - Body ground | Always | 10 kΩ or higher |
| K2-1 - Body ground | Always | 10 kΩ or higher |
| NG |
 | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 5. | INSPECT FRONT NO. 1 SPEAKER ASSEMBLY RH |
Click here
OK:
Malfunction disappears.
| NG |
 | REPLACE FRONT NO. 1 SPEAKER ASSEMBLY RH |
|
| 6. | INSPECT FRONT NO. 2 SPEAKER ASSEMBLY RH |
Click here
OK:
Malfunction disappears.
| OK |
 | REPLACE STEREO COMPONENT EQUALIZER ASSEMBLY |
| NG |
 | REPLACE FRONT NO. 2 SPEAKER ASSEMBLY RH |
