BEFORE STARTING DRIVING ADJUSTMENT

CAUTION / NOTICE / HINT

HINT:

  • Purpose of millimeter wave radar beam axis learning
    • If the installation position or orientation of the millimeter wave radar sensor is changed due to it being removed and reinstalled or replaced with a new one, or due to the front bumper or radiator grille being replaced, it is necessary for the millimeter wave radar sensor to learn the driving direction of the vehicle in order for each driving support system to operate correctly.

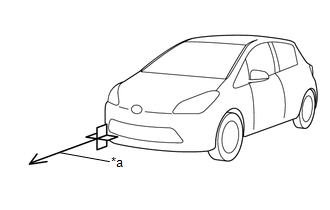

  • Vehicle driving direction

    *a

    Vehicle driving direction

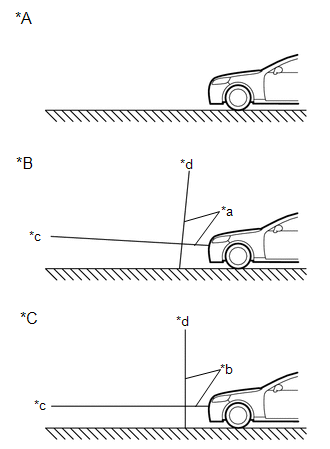

    • Adjustment

      *A

      When using a new millimeter wave radar sensor

      *B

      When reusing millimeter wave radar sensor

      *C

      Millimeter wave radar sensor after adjustment

      *a

      Previously learned driving direction

      *b

      Newly learned driving direction

      *c

      Horizontal direction

      *d

      Vertical direction

PROCEDURE

1. PERFORM DRIVING ADJUSTMENT

NOTICE:

  • When performing the driving adjustment, obey all applicable traffic laws.
  • Select a road where the driving adjustment can be carried out safely.

(a) Driving adjustment concept

  • The millimeter wave radar sensor emits radio waves in the millimeter wave band, and if objects that reflect these radio waves are present within the detection range, the system uses those reflected waves to detect the distance to, direction of, and relative speed of those objects.
  • The distance to the detected object is detected using the time delay between when the radio wave is emitted and when the reflected wave is detected; the direction of the object is calculated using the phase difference of the received radio waves, and the speed is detected using the frequency shift of the reflected waves.
  • On curves, the estimated curve radius is used to perform course compensation.
  • The time required before adjustment is completed varies according to the vehicle speed and external conditions.

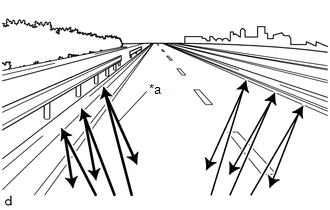

*a

Movement in external environment

(b) Driving conditions

  • Perform the adjustment outside during daytime, on a sunny or cloudy day.
  • If preceding vehicles are present, they should be kept at a distance of at least 20 m (66 ft.)
  • Stationary objects such as guard rails should be present.
  • Drive the vehicle straight ahead at a speed of 40 km/h or more.
  • Ensure that there is no snow, ice, or foreign matter on the front or rear of the radar sensor cover or on the front surface of the sensor.
  • Make sure that no covers other than the genuine radar sensor cover are installed.
  • Drive on a road that does not have heavy snow accumulation around it.

NOTICE:

If the sensor axis is excessively misaligned, the online axis alignment may not be able to make progress.

After driving the vehicle with all conditions met for approximately 5 to 15 minutes cumulatively, the adjustment will be completed.

HINT:

  • If the adjustment does not complete even after driving for 15 minutes or more cumulatively, change to a different driving route.
  • If the adjustment does not complete even after driving for 30 minutes or more cumulatively, perform adjustment by target recognition.

(c) Road environment

HINT:

When driving on a bumpy or unpaved road, making frequent accelerations and decelerations, etc., the millimeter wave radar sensor condition may be unstable, which may cause adjustment to take a long time.

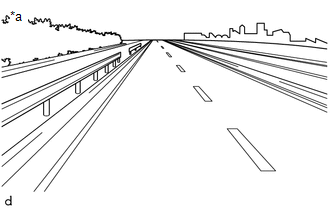

  • Road environments conducive to adjustment

    *a

    Roads with stationary metallic objects such as guard rails

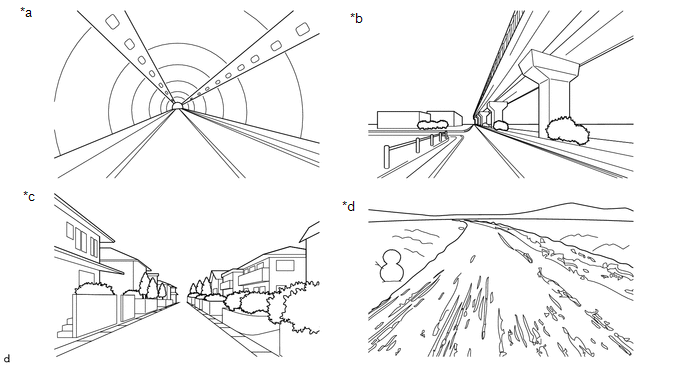

  • Road environments which hinder adjustment

    *a

    Inside tunnels where there are many diffuse

    *b

    Underneath elevated structures where there are many diffuse radar reflections

    *c

    In residential neighborhoods where there are many diffuse radar reflections

    *d

    Roads where there are very few radar reflections
