Toyota Yaris: Front Brake / Components
COMPONENTS
ILLUSTRATION

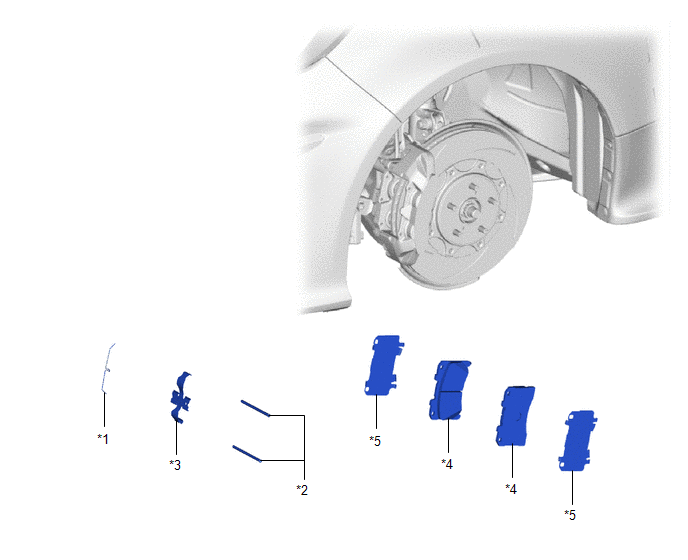

| *1 | FRONT DISC BRAKE PIN HOLD CLIP | *2 | FRONT DISC BRAKE ANTI-RATTLE PIN |
| *3 | FRONT DISC BRAKE ANTI-RATTLE SPRING | *4 | FRONT DISC BRAKE PAD |
| *5 | FRONT DISC BRAKE ANTI-SQUEAL SHIM | - | - |
ILLUSTRATION
| *1 | FRONT FLEXIBLE HOSE | *2 | UNION BOLT |
| *3 | GASKET | *4 | FRONT DISC BRAKE CYLINDER ASSEMBLY |
| *5 | FRONT DISC | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *1 | CYLINDER BOOT | *2 | FRONT DISC BRAKE PISTON |
| *3 | PISTON SEAL | *4 | FRONT DISC BRAKE BLEEDER PLUG CAP |
| *5 | FRONT DISC BRAKE BLEEDER PLUG | *6 | FRONT DISC BRAKE CYLINDER |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | Lithium soap base glycol grease | - | - |
Front Brake
..
Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE CYLINDER BOOT (a) Using a screwdriver with its tip wrapped with protective tape, remove the 4 cylinder boots from the front disc brake cylinder...
