PARTS LOCATION

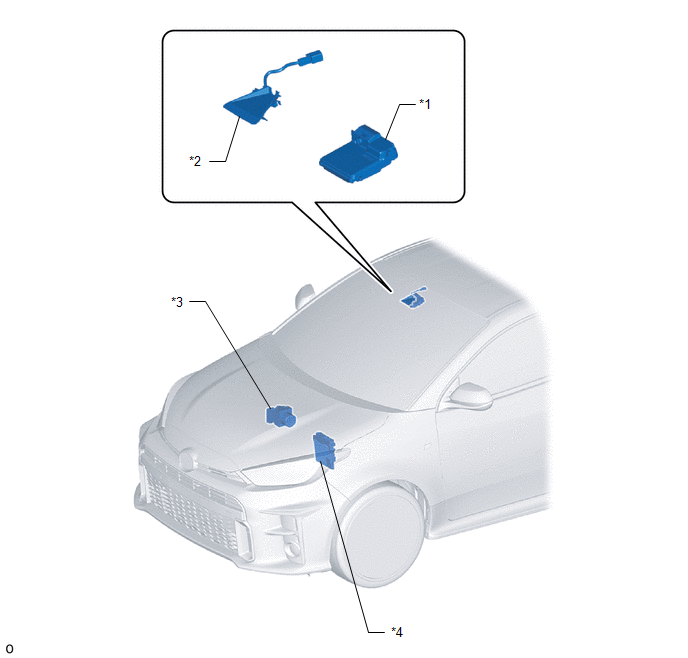

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

*3

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*4

ECM

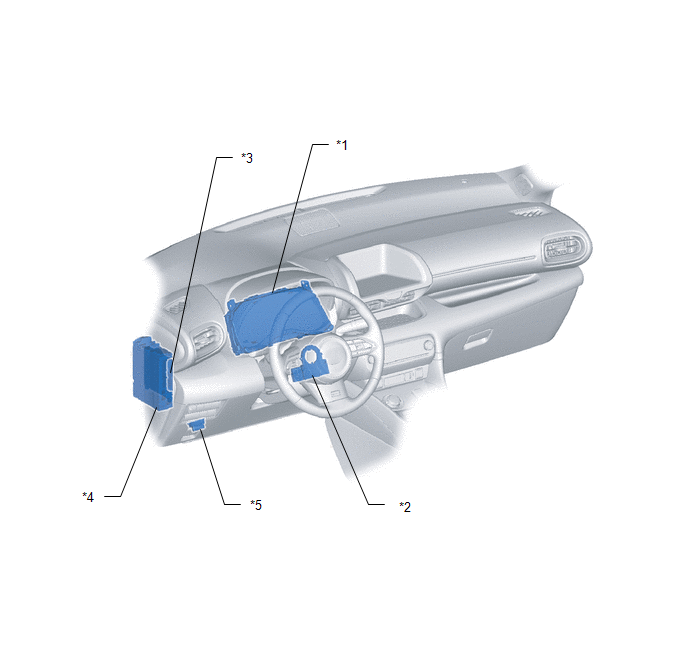

ILLUSTRATION

*1

COMBINATION METER ASSEMBLY

*2

STEERING SENSOR

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-IGR NO. 2 FUSE

*5

DLC3

-

-

    Precaution

    PRECAUTION PRECAUTIONS FOR FRONT CAMERA SYSTEM (a) Features of forward recognition camera (1) The forward recognition camera has characteristics similar to those of human eyes...

    System Diagram

    S..
