COMPONENTS

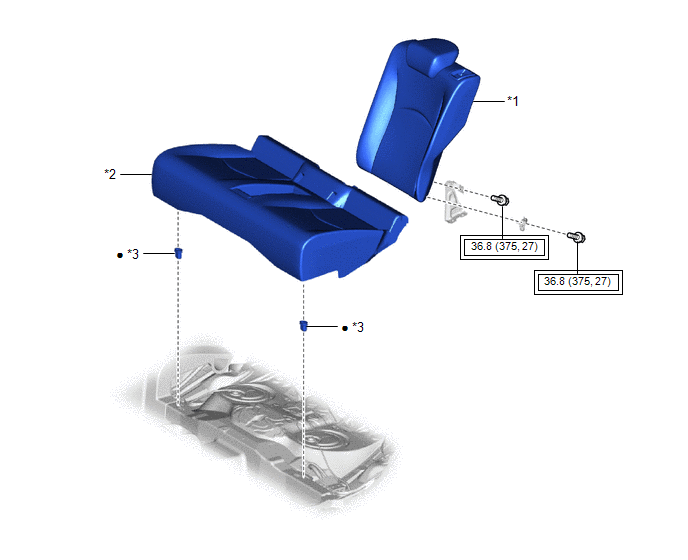

ILLUSTRATION

*1

REAR SEATBACK ASSEMBLY

*2

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

*3

REAR SEAT CUSHION LOCK HOOK

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

ILLUSTRATION

*1

FRONT DOOR SCUFF PLATE

*2

LAP BELT OUTER ANCHOR COVER

*3

QUARTER TRIM PANEL ASSEMBLY

*4

FRONT SEAT OUTER BELT ASSEMBLY

*5

NO. 1 SIDE AIRBAG SENSOR

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

    Side Airbag Sensor (for Rear Pillar)

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No...
