Toyota Yaris: Front Passenger Airbag Assembly / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Interior / Supplemental Restraint Systems / Front Passenger Airbag Assembly / Components

COMPONENTS

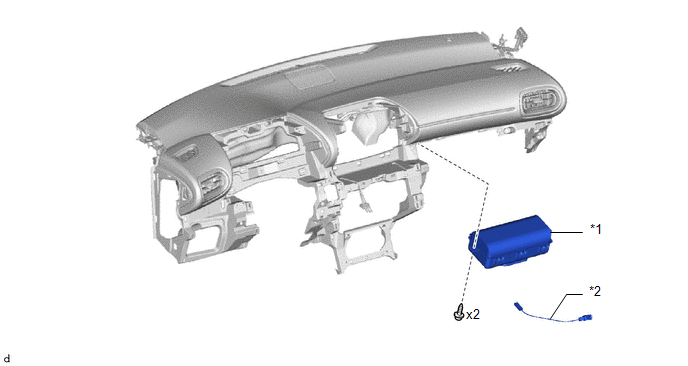

ILLUSTRATION

INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY

NO. 2 INSTRUMENT PANEL WIRE

Front Passenger Airbag Assembly

Removal

REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the instrument panel passenger without door airbag assembly removal/installation are shown below...
