COMPONENTS

ILLUSTRATION

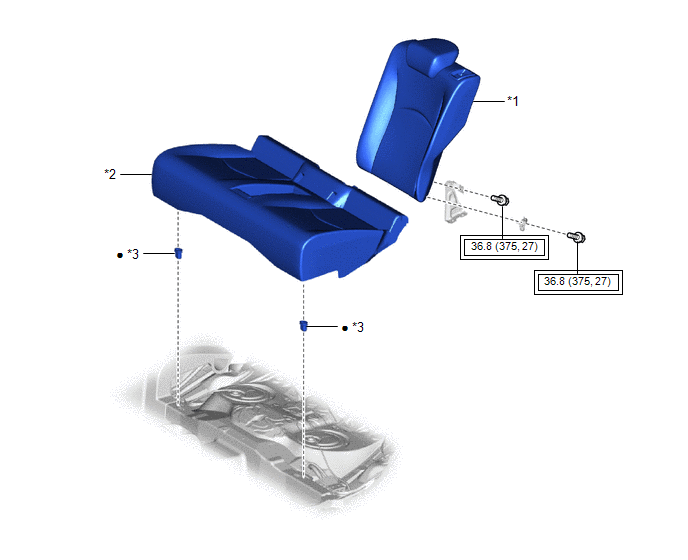

*1	REAR SEATBACK ASSEMBLY	*2	BENCH TYPE REAR SEAT CUSHION ASSEMBLY
*3	REAR SEAT CUSHION LOCK HOOK	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	●	Non-reusable part

ILLUSTRATION

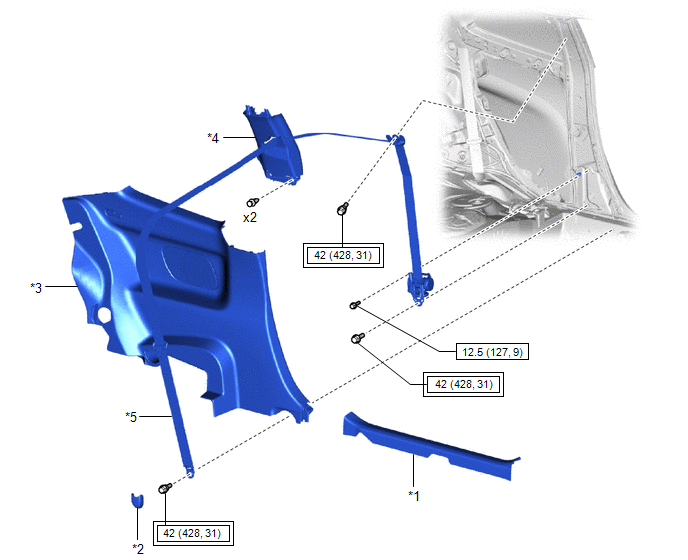

*1	FRONT DOOR SCUFF PLATE	*2	LAP BELT OUTER ANCHOR COVER
*3	QUARTER TRIM PANEL ASSEMBLY	*4	CENTER PILLAR UPPER GARNISH
*5	FRONT SEAT OUTER BELT ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

Precaution

PRECAUTION CAUTION: Replace any faulty parts of the seat belt systems (outer belt, inner belt, bolts, nuts, adjustable shoulder anchor, tether anchor hardware and other related parts)...

Removal

REMOVAL CAUTION / NOTICE / HINT CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing...
