REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

HINT:

  • When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Lane tracing assist system

      Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

      Pre-collision system

      Stop and start system

      Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the RH side and LH side.
  • The procedure listed below is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch is turned off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

CAUTION:

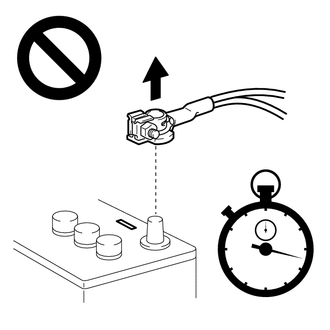

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If an SRS part is accidentally deployed, it may cause a serious injury.

3. DISCONNECT REAR SEATBACK ASSEMBLY

Click here

4. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Click here

5. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

6. REMOVE FRONT DOOR SCUFF PLATE

Click here

7. REMOVE LAP BELT OUTER ANCHOR COVER

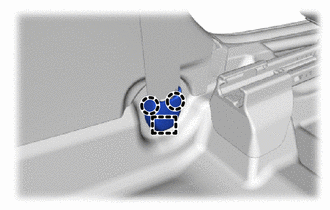

(a) Disengage the claws and guide to remove the lap belt outer anchor cover.

8. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

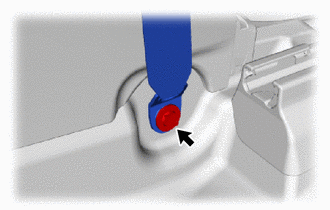

(a) Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.

9. REMOVE QUARTER TRIM PANEL ASSEMBLY

Click here

10. REMOVE CENTER PILLAR UPPER GARNISH

Click here

11. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

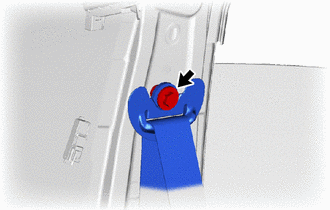

(a) Remove the bolt to disconnect the shoulder anchor of the front seat outer belt assembly.

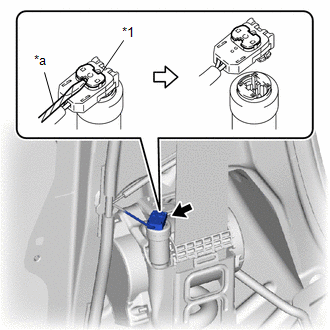

(b) Using a screwdriver with its tip wrapped in protective tape, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.

*a

Protective Tape

*1

Locking Button

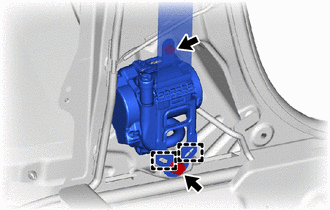

(c) Remove the 2 bolts.

(d) Disengage the guides to remove the front seat outer belt assembly.
