Toyota Yaris: Brake Pedal / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Brake / Brake System (other) / Brake Pedal / Components

COMPONENTS

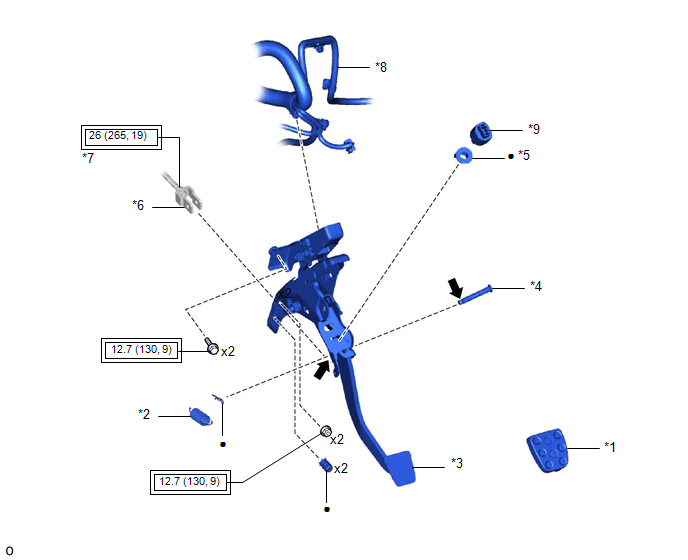

ILLUSTRATION

*1

BRAKE PEDAL PAD

*2

BRAKE PEDAL RETURN SPRING

*3

BRAKE PEDAL SUPPORT ASSEMBLY

*4

PUSH ROD PIN

*5

STOP LIGHT SWITCH MOUNTING ADJUSTER

*6

BRAKE MASTER CYLINDER PUSH ROD CLEVIS

*7

CLEVIS LOCK NUT

*8

WIRE HARNESS

*9

STOP LIGHT SWITCH ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Lithium soap base glycol grease

-

-
