Toyota Yaris: Rear Seat Assembly / Components
COMPONENTS

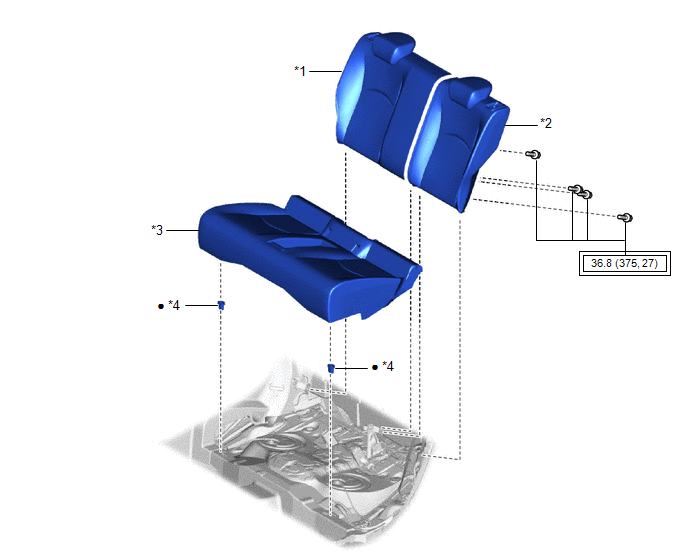

ILLUSTRATION
| *1 | REAR SEATBACK ASSEMBLY RH | *2 | REAR SEATBACK ASSEMBLY LH |
| *3 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

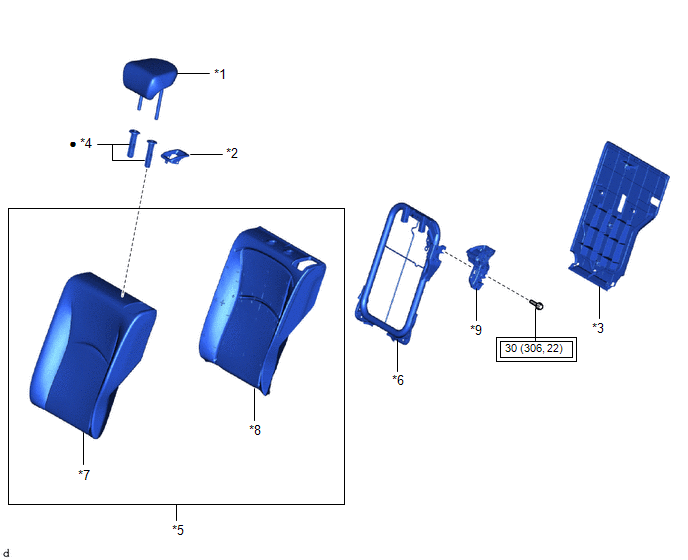

ILLUSTRATION
| *1 | REAR SEAT HEADREST ASSEMBLY | *2 | REAR SEATBACK LOCK UPPER BEZEL |
| *3 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | *4 | REAR SEAT HEADREST SUPPORT |
| *5 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH | *6 | REAR SEATBACK FRAME SUB-ASSEMBLY RH |
| *7 | SEPARATE TYPE REAR SEATBACK COVER RH | *8 | SEPARATE TYPE REAR SEATBACK PAD RH |
| *9 | REAR SEATBACK LOCK ASSEMBLY RH | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

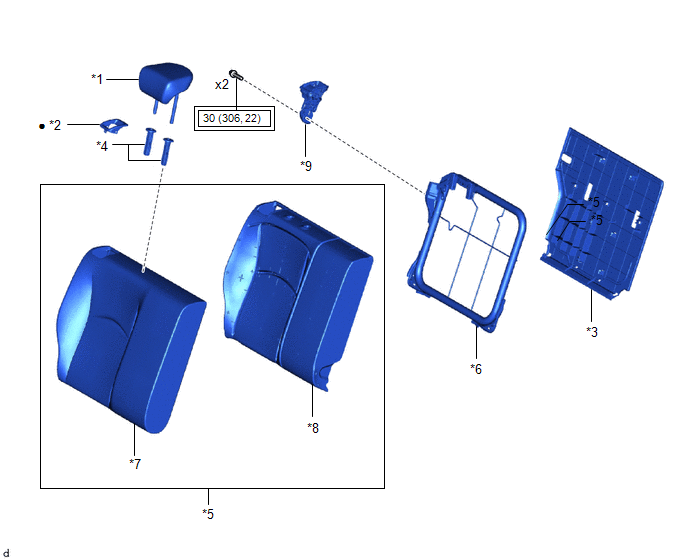

ILLUSTRATION
| *1 | REAR SEAT HEADREST ASSEMBLY | *2 | REAR SEATBACK LOCK UPPER BEZEL |
| *3 | REAR SEATBACK BOARD SUB-ASSEMBLY LH | *4 | REAR SEAT HEADREST SUPPORT |
| *5 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH | *6 | REAR SEATBACK FRAME SUB-ASSEMBLY LH |
| *7 | SEPARATE TYPE REAR SEATBACK COVER LH | *8 | SEPARATE TYPE REAR SEATBACK PAD LH |
| *9 | REAR SEATBACK LOCK ASSEMBLY LH | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

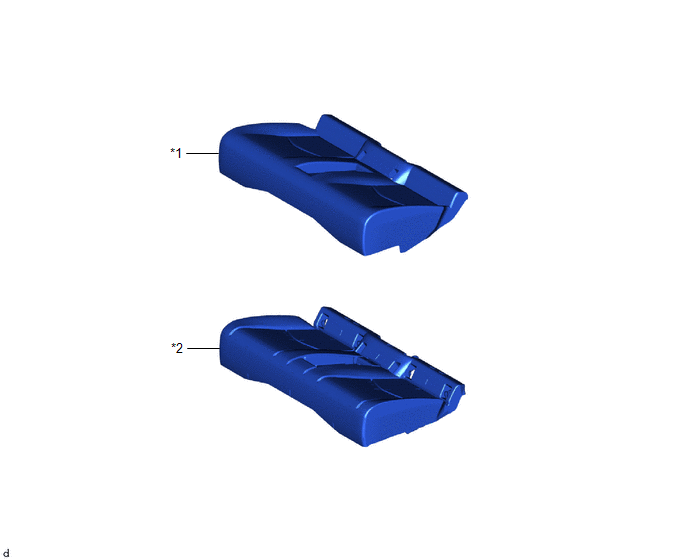

ILLUSTRATION
| *1 | BENCH TYPE REAR SEAT CUSHION COVER | *2 | BENCH TYPE REAR SEAT CUSHION PAD |
Removal
REMOVAL CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the parts may injure your hands. PROCEDURE 1. REMOVE REAR SEATBACK ASSEMBLY RH (a) Fold the rear seatback assembly RH forward...
