Toyota Yaris: Condenser / Components
COMPONENTS
ILLUSTRATION

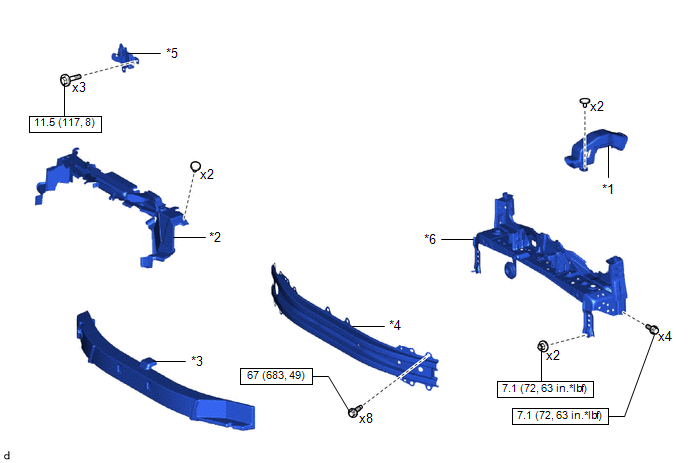

| *1 | NO. 1 AIR CLEANER INLET | *2 | RADIATOR UPPER AIR GUIDE PLATE |
| *3 | FRONT BUMPER ENERGY ABSORBER | *4 | FRONT BUMPER REINFORCEMENT |
| *5 | HOOD LOCK ASSEMBLY | *6 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

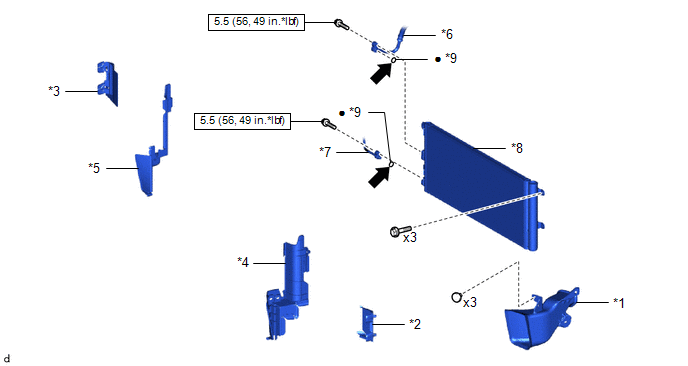

| *1 | COOL AIR INTAKE DUCT | *2 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH |
| *3 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH | *4 | NO. 1 RADIATOR AIR GUIDE LH |
| *5 | NO. 1 RADIATOR AIR GUIDE RH | *6 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *7 | NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *8 | COOLER CONDENSER ASSEMBLY |
| *9 | O-ring | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Compressor oil ND-OIL 8 or equivalent | - | - |
ILLUSTRATION

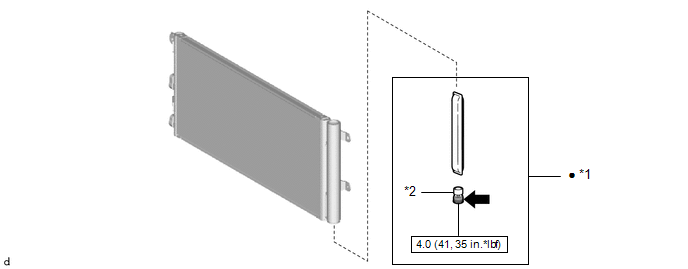

| *1 | COOLER DRYER | *2 | CAP |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Compressor oil ND-OIL 8 or equivalent | - | - |
Condenser
..
On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT COOLER CONDENSER ASSEMBLY (a) If the cooler condenser assembly fins are dirty, clean them with water and dry them with compressed air...
