COMPONENTS

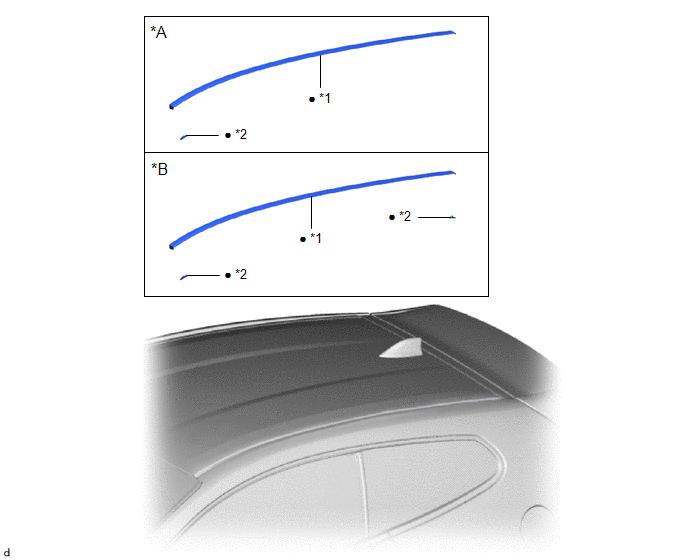

ILLUSTRATION

*A	for 1-clip Type	*B	for 2-clip Type
*1	ROOF DRIP SIDE MOULDING	*2	ROOF DRIP SIDE FINISH MOULDING CLIP
●	Non-reusable part	-	-

Roof Drip Side Finish Moulding

Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1...
