Toyota Yaris: Rear Bumper / Components
COMPONENTS
ILLUSTRATION
| *1 | REAR BUMPER SIDE SEAL RH | *2 | REAR BUMPER SIDE SEAL LH |
| *3 | REAR BUMPER ASSEMBLY | - | - |
ILLUSTRATION
| *1 | BACK-UP LIGHT ASSEMBLY | *2 | NO. 2 LUGGAGE ROOM WIRE |
ILLUSTRATION

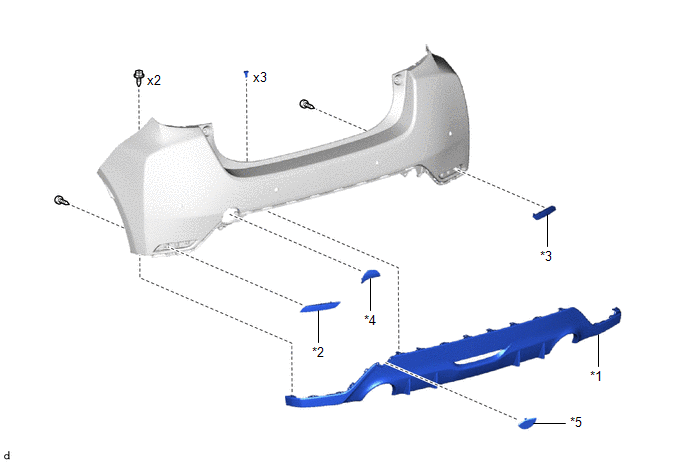

| *1 | REAR BUMPER CENTER GUARD | *2 | REFLEX REFLECTOR ASSEMBLY LH |
| *3 | REFLEX REFLECTOR ASSEMBLY RH | *4 | NO. 1 REAR BUMPER PLATE |
| *5 | REAR BUMPER LOWER COVER | - | - |
ILLUSTRATION
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | REAR BUMPER SIDE RETAINER LH | *4 | REAR BUMPER SIDE RETAINER RH |
| *5 | REAR BUMPER SIDE SUPPORT LH | *6 | REAR BUMPER SIDE SUPPORT RH |
| *7 | REAR BUMPER ARM SUB-ASSEMBLY LH | *8 | REAR BUMPER ARM SUB-ASSEMBLY RH |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Rear Bumper
..
Removal
REMOVAL PROCEDURE 1. REMOVE REAR BUMPER SIDE SEAL LH (a) Apply protective tape around the rear bumper assembly. HINT: Use the same procedure for the RH side and LH side...
