Toyota Yaris: Name Plate / Components
COMPONENTS

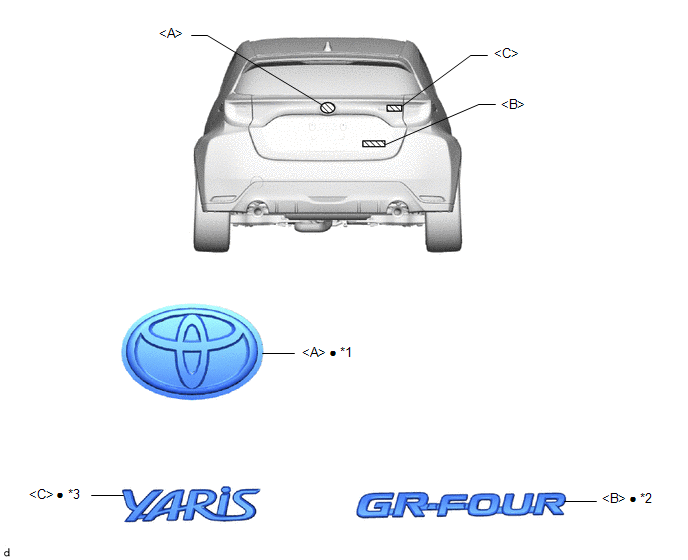

ILLUSTRATION
| *1 | SYMBOL EMBLEM | *2 | NO. 4 BACK DOOR NAME PLATE |
| *3 | NO. 2 BACK DOOR NAME PLATE | - | - |
| ● | Non-reusable part | - | - |

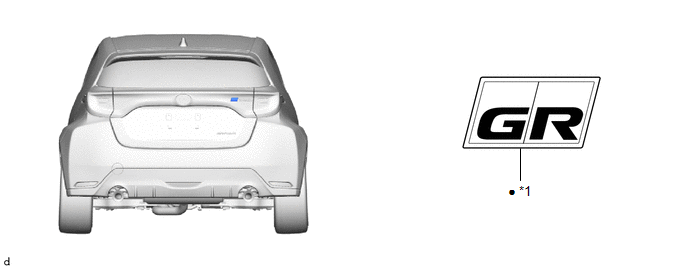

ILLUSTRATION
| *1 | NO. 1 BACK DOOR NAME PLATE | - | - |
| ● | Non-reusable part | - | - |

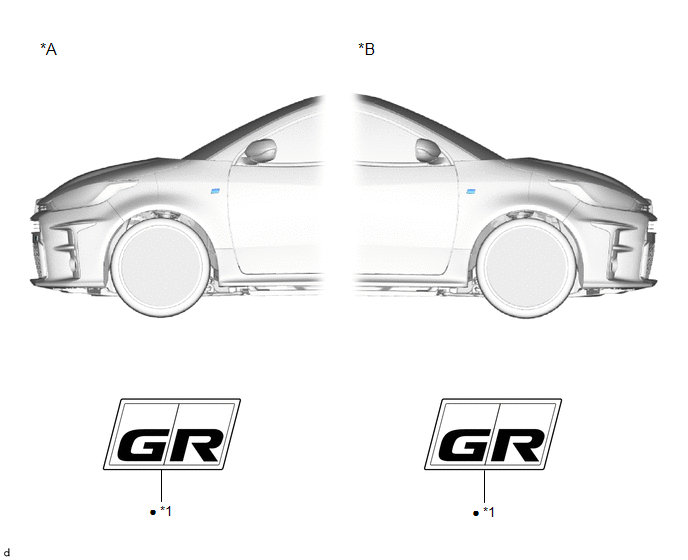

ILLUSTRATION
| *A | for LH side | *B | for RH side |
| *1 | NO. 1 FRONT FENDER NAME PLATE | - | - |
| ● | Non-reusable part | - | - |
REMOVAL CAUTION / NOTICE / HINT HINT: When removing the name plates, heat the vehicle body, back door outside garnish and name plates using a heat light...
