COMPONENTS

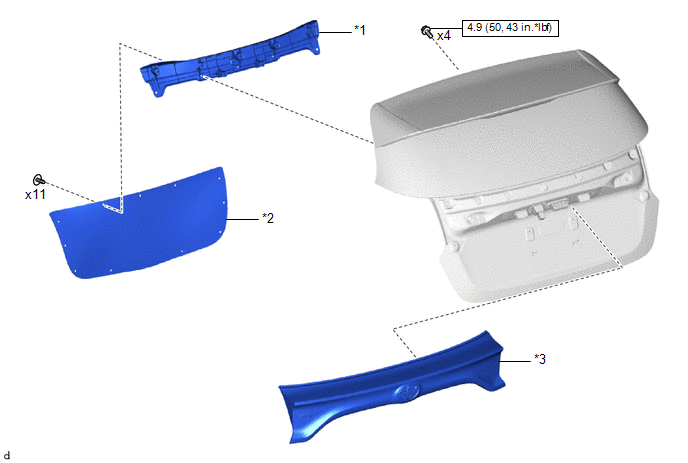

ILLUSTRATION

*1

BACK DOOR TRIM COVER

*2

BACK DOOR TRIM BOARD

*3

BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

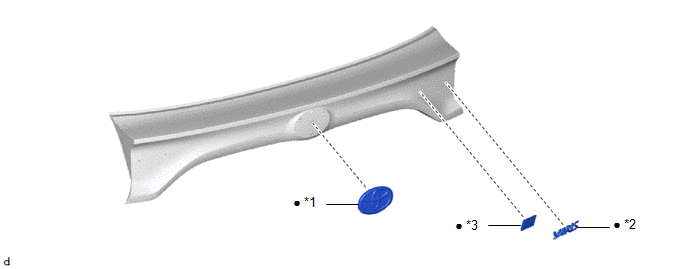

ILLUSTRATION

*1

SYMBOL EMBLEM

*2

NO. 2 BACK DOOR NAME PLATE

*3

NO. 1 BACK DOOR NAME PLATE

-

-

Non-reusable part

-

-

    Back Door Outside Garnish

    ..

    Removal

    REMOVAL PROCEDURE 1. REMOVE BACK DOOR TRIM BOARD Click here 2. REMOVE BACK DOOR TRIM COVER Click here 3. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (a) Remove the 4 bolts...
