Toyota Yaris: Engine Assembly / Components
COMPONENTS
ILLUSTRATION

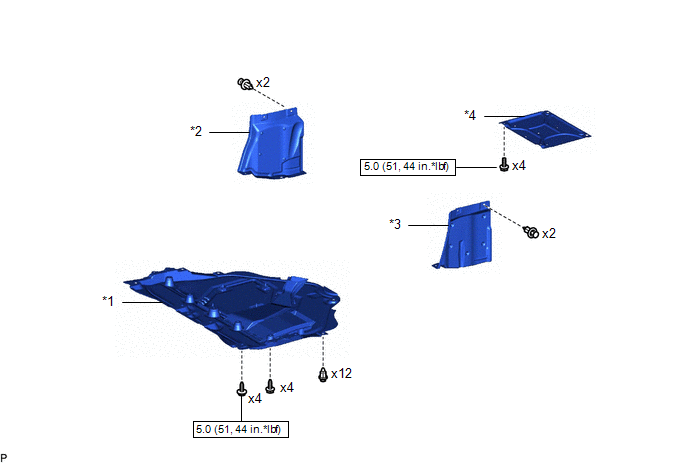

| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | ENGINE UNDER COVER RH |
| *3 | ENGINE UNDER COVER LH | *4 | CENTER NO. 4 ENGINE UNDER COVER |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

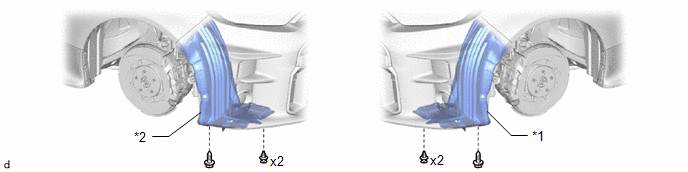

| *1 | FRONT FENDER LINER LH | *2 | FRONT FENDER LINER RH |
ILLUSTRATION

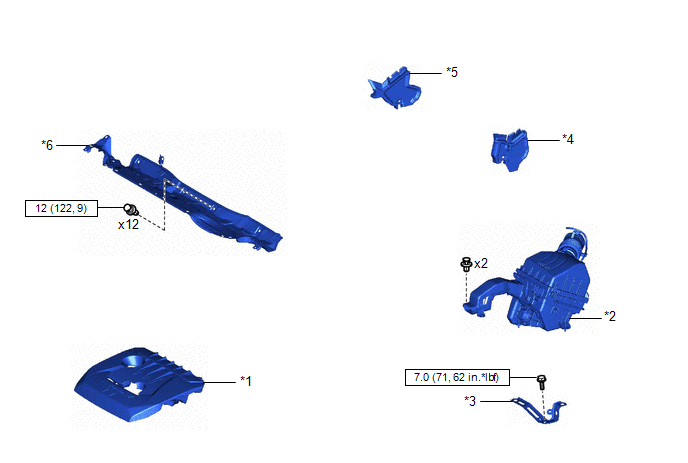

| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | AIR CLEANER ASSEMBLY |
| *3 | AIR CLEANER BRACKET | *4 | NO. 1 FRONT VENTILATOR SEAL |
| *5 | WATER GUARD PLATE RH | *6 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

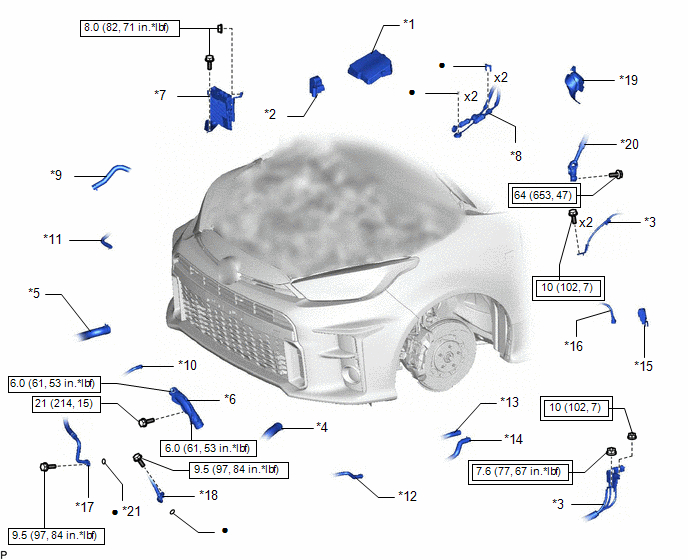

ILLUSTRATION
| *1 | NO. 1 RELAY BLOCK COVER | *2 | JUNKTION BLOCK COVER |
| *3 | WIRE HARNESS | *4 | NO. 1 RADIATOR HOSE |
| *5 | NO. 2 RADIATOR HOSE | *6 | NO. 2 AIR TUBE |
| *7 | ECM | *8 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *9 | UNION TO CONNECTOR TUBE HOSE | *10 | NO. 1 WATER BY-PASS HOSE |
| *11 | NO. 2 WATER BY-PASS HOSE | *12 | NO. 1 FUEL VAPOR FEED HOSE |
| *13 | NO. 3 WATER BY-PASS HOSE ASSEMBLY | *14 | INLET HEATER WATER HOSE |
| *15 | FUEL HOSE CLAMP | *16 | FUEL TUBE SUB-ASSEMBLY |
| *17 | SUCTION HOSE SUB-ASSEMBLY | *18 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *19 | COLUMN HOLE COVER SILENCER SHEET | *20 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *21 | O-RING | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
ILLUSTRATION

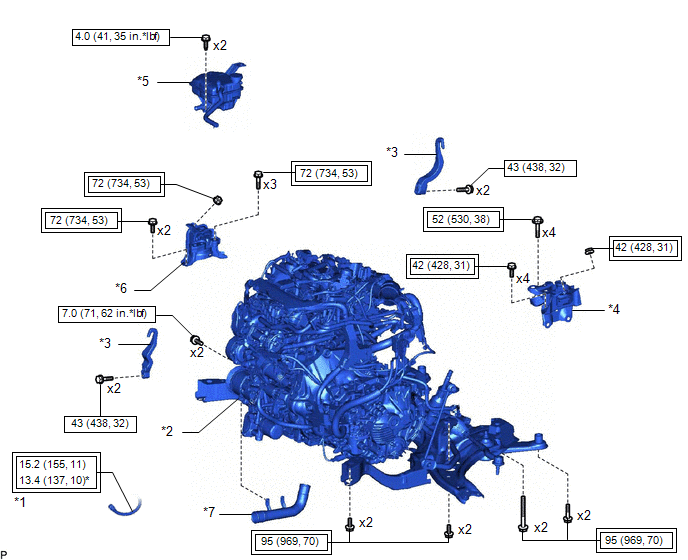

| *1 | NO. 1 CLUTCH HOSE | *2 | ENGINE ASSEMBLY WITH TRANSAXLE |
| *3 | ENGINE HANGER | *4 | ENGINE MOUNTING INSULATOR LH |
| *5 | RESERVE TANK ASSEMBLY | *6 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
| *7 | NO. 1 AIR TUBE | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION

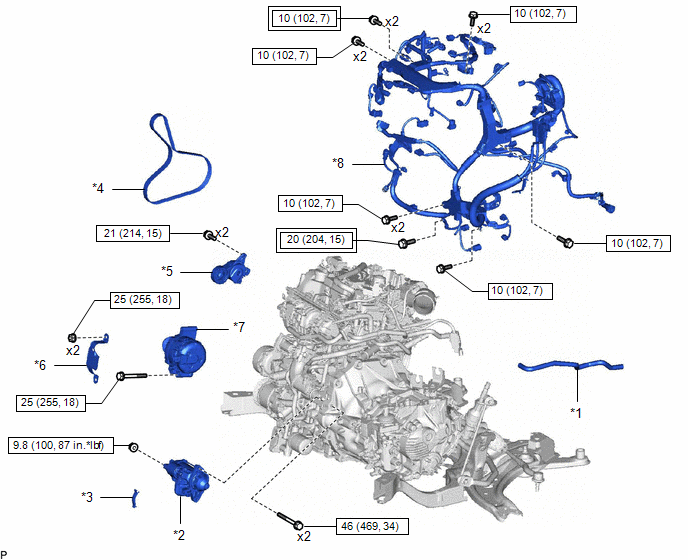

| *1 | NO. 1 FUEL VAPOR FEED HOSE | *2 | STARTER ASSEMBLY |
| *3 | FLYWHEEL HOUSING SIDE COVER | *4 | FAN AND GENERATOR V BELT |
| *5 | V-RIBBED BELT TENSIONER ASSEMBLY | *6 | GENERATOR SPLASH GUARD COVER ASSEMBLY |
| *7 | GENERATOR WITH REGULATOR ASSEMBLY | *8 | ENGINE WIRE |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION

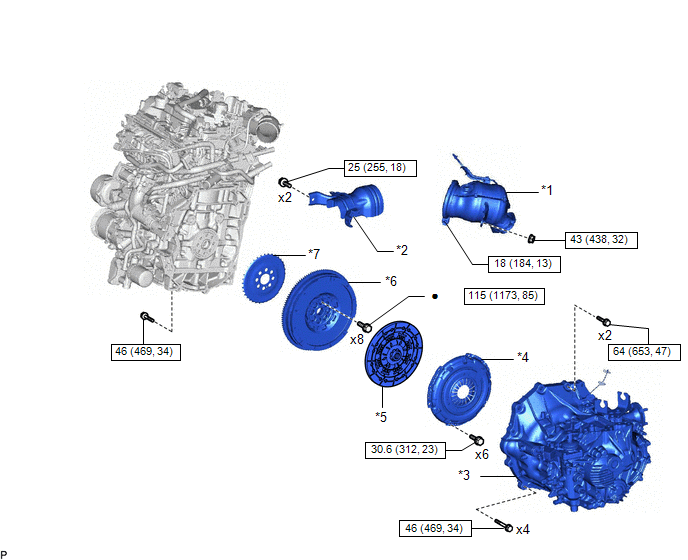

| *1 | EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY | *2 | PROPELLER SHAFT HEAT INSULATOR |
| *3 | MANUAL TRANSAXLE | *4 | CLUTCH COVER ASSEMBLY |
| *5 | CLUTCH DISC ASSEMBLY | *6 | FLYWHEEL SUB-ASSEMBLY |
| *7 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the engine assembly removal/installation are shown below...
