COMPONENTS

ILLUSTRATION

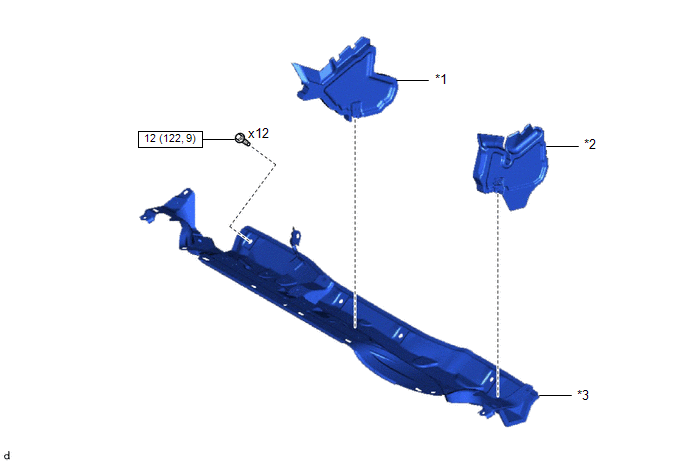

*1	WATER GUARD PLATE LH	*2	NO. 1 FRONT VENTILATOR SEAL
*3	OUTER COWL TOP PANEL SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

*1	AIR FUEL RATIO SENSOR	*2	INTAKE AIR RESONATOR
*3	NO. 1 AIR CLEANER HOSE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST

Air Fuel Ratio Sensor (for Sensor 1)

Removal

REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the air fuel ratio sensor removal/installation are shown below...
